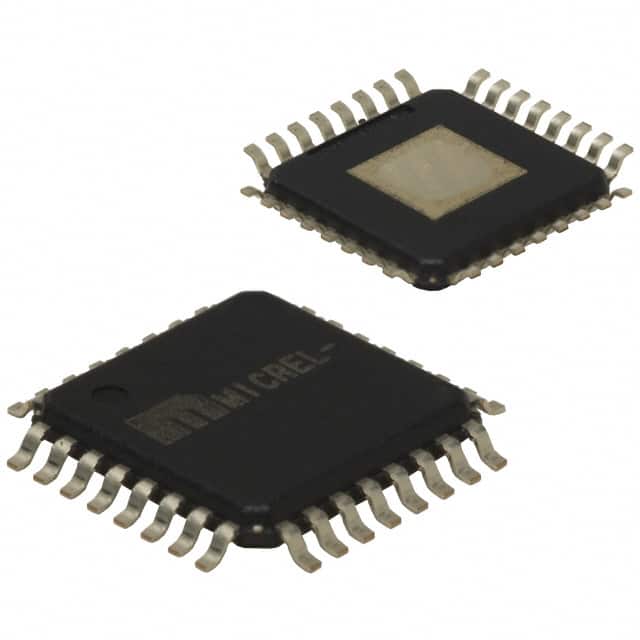

SY87739LHI
IC SYNTHESIZER FRACT 3.3V 32TQFPManufacturer: Microchip Technology
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Microchip Technology's SY87739LHI is a high-performance AnyClock® fractional synthesizer designed for demanding timing applications. This 32-TQFP-EP (7x7) packaged device offers a maximum frequency of 729MHz with a 1:1 input-to-output ratio. Featuring PECL inputs and outputs, it supports differential signaling for enhanced signal integrity. The SY87739LHI is engineered for applications requiring precise clock generation in Ethernet, Fibre Channel, and SONET/SDH/ATM systems. Its PLL architecture, coupled with a wide operating temperature range of -40°C to 85°C, ensures reliable performance in various environments. The surface mountable design and 3.15V to 3.45V supply voltage range make it suitable for integration into complex board designs.
Additional Information
Series: AnyClock®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Output | PECL |
| Frequency - Max | 729MHz |
| Input | PECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Main Purpose | Ethernet, Fibre Channel, SONET/SDH/ATM |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-TQFP-EP (7x7) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
