MAX9451EHJ2T
IC CLOCK GEN W/VCXO 32-TQFPManufacturer: Microchip Technology
Categories: Application Specific Clock/Timing
Quality Control: Learn More

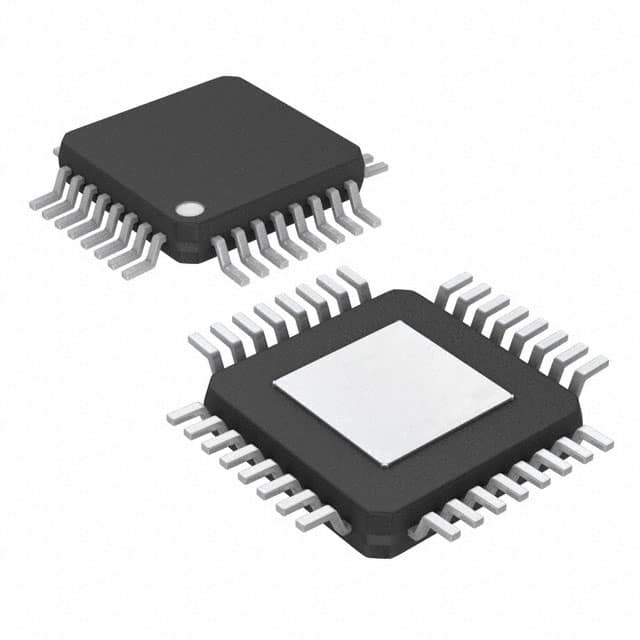

Microchip Technology MAX9451EHJ2T is a versatile clock generator IC designed for high-speed communication systems. This component features a Phase-Locked Loop (PLL) and supports a maximum frequency of 160MHz. It accepts LVCMOS, LVDS, and LVPECL inputs and provides an HSTL output. The device is configured with a 2:2 input-to-output ratio and offers differential input/output capabilities. Its primary applications include 3G, Ethernet, and SONET/SDH infrastructure. The MAX9451EHJ2T is supplied in a 32-TQFP Exposed Pad (5x5) package, suitable for surface mounting, and operates within a temperature range of -40°C to 85°C. The unit of sale is a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Output | HSTL |
| Frequency - Max | 160MHz |
| Input | LVCMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 3.6V |
| Main Purpose | 3G, Ethernet, SONET/SDH |
| Ratio - Input:Output | 2:2 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-TQFP-EP (5x5) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
