DSC557-0344SI0T
MEMS OSC XO 100.0000MHZ HCSL SMDManufacturer: Microchip Technology
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Microchip Technology DSC557-0344SI0T is a high-performance MEMS oscillator, specifically the DSC557-03 series, designed for demanding clock generation applications. This electronic component delivers a stable 100MHz output frequency with HCSL signaling, ideal for systems requiring precise timing. Featuring a 1:2 ratio, the device acts as a PCI Express (PCIe) clock generator with a single output, supporting a broad input voltage range of 2.25V to 3.6V. Its surface mount package, a 16-TSSOP, is suitable for automated assembly processes. The DSC557-0344SI0T operates reliably across an industrial temperature range of -40°C to 85°C, making it a robust choice for telecommunications, computing, and industrial automation sectors. The integrated PLL ensures superior jitter performance critical for high-speed serial interfaces like PCIe.
Additional Information
Series: DSC557-03RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Frequency - Max | 100MHz |
| Input | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.25V ~ 3.6V |
| Main Purpose | PCI Express (PCIe) |
| Ratio - Input:Output | 0:2 |
| Differential - Input:Output | No/Yes |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

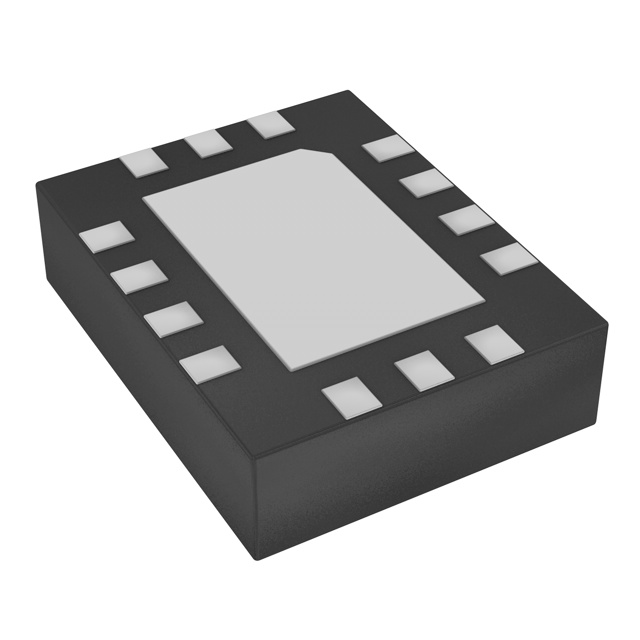

DSC557-0344FL1T
