AC162039
AC/DC DESKTOP ADAPTER 9V 2.7WManufacturer: Microchip Technology
Categories: AC DC Desktop, Wall Power Adapters
Quality Control: Learn More

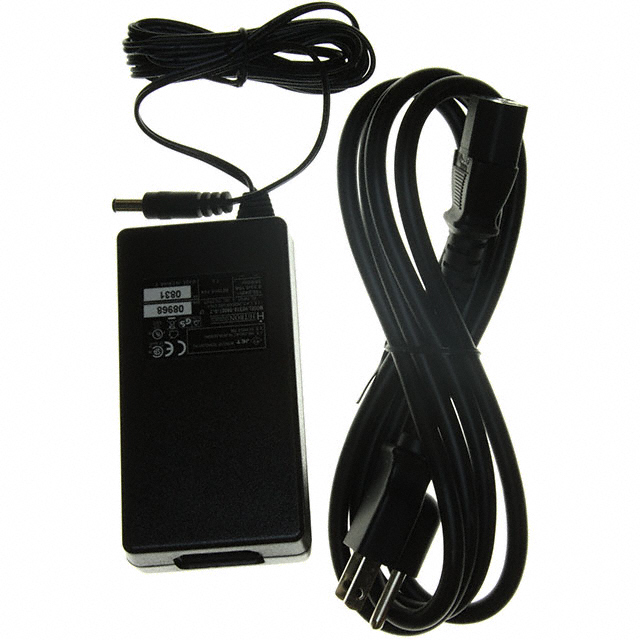

The Microchip Technology HES10 series AC/DC external desktop adapter, part number AC162039, provides a regulated 9V output with a maximum current of 300mA, delivering 2.7W of power. Designed for North American regions with a NEMA 5-15P input connector, this Class I adapter features a right-angle barrel plug output (2.5mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. This component is utilized in Information Technology Equipment (ITE) commercial applications.
Additional Information
Series: HES10RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | - |
| Voltage - Output | 9V |
| Polarization | Positive Center |
| Output Connector | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm |
| Voltage - Input | - |
| Cord Length | - |
| Operating Temperature | - |
| Applications | ITE (Commercial) |
| Input Type | Cord |
| Approval Agency | - |
| Form | Desktop (Class I) |
| Efficiency | - |
| Current - Output (Max) | 300mA |
| Input Connector | NEMA 5-15P |
| Region Utilized | North America |
| No Load Power Consumption | - |
| Power (Watts) | 2.7 W |
