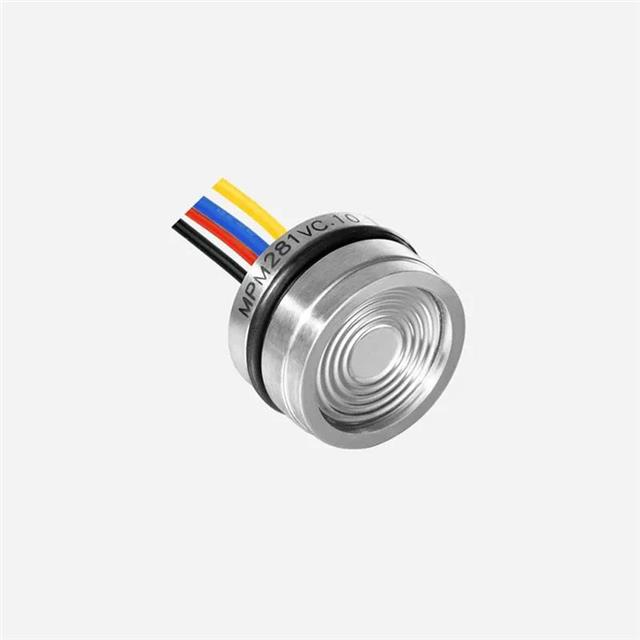

MPM281VC-19-A-0-L-2
SENSOR 10152.64PSIA 0.1VManufacturer: Micro Sensor
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 10152.64PSI (70000kPa) Absolute 0 mV ~ 100 mV Module
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: CanDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | CAN |
| Package / Case | Module |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 10152.64PSI (70000kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Connector |
| Voltage - Supply | 10V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 15954.15PSI (110000kPa) |
Request a Quote
Clients Also Buy

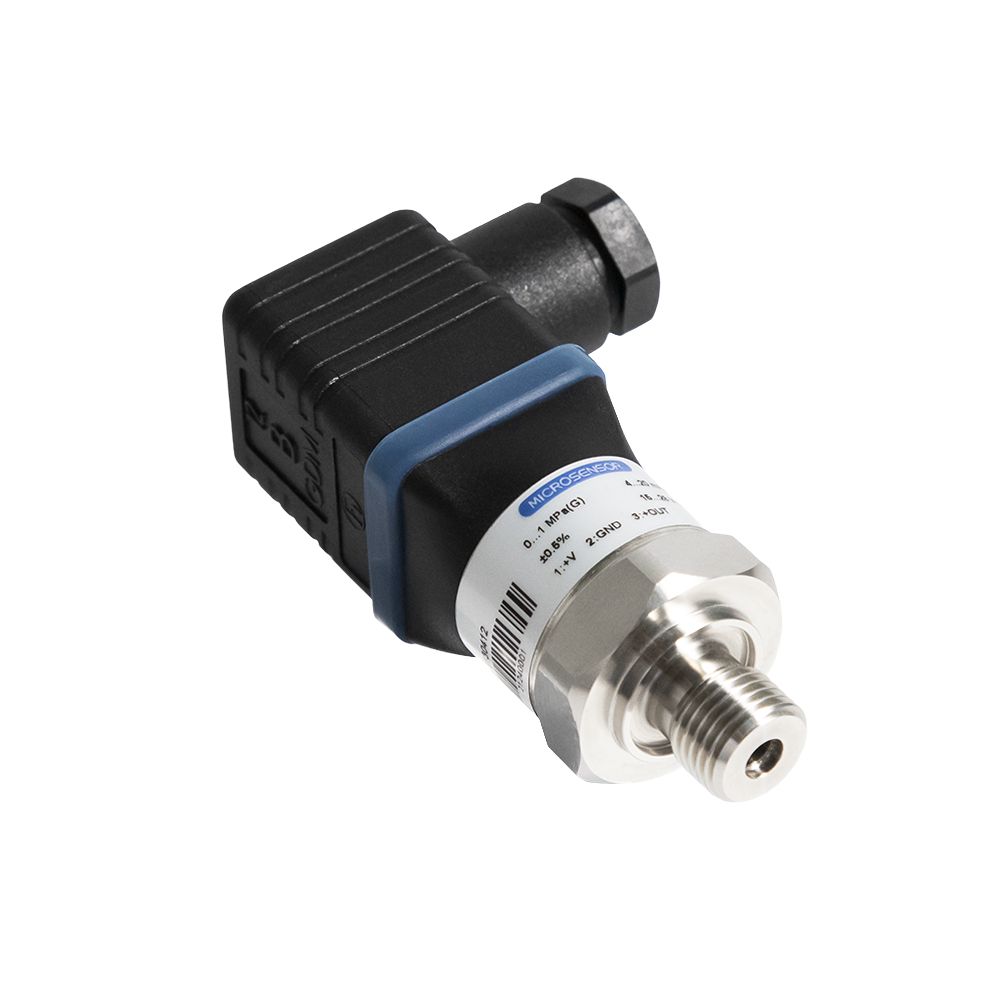

M20-G-253-1-4-42-1-1-S
