MMF500997
STRAIN GAUGE 350 OHM WELDManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
Linear Weldable Strain Gauge 0.5% (±5000µm/m) 0.250"" (6.35mm) 0.125"" (3.18mm)
Additional Information
Series: LWKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:&mpn=MMF500997&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -320 ~ 500°F (-195 ~ 260°C) |
| Length - Overall | 1.15"" (29.2mm) |
| Resistance Tolerance | ±0.4% |
| Width - Overall | 0.32"" (8.1mm) |
| Length - Active | 0.250"" (6.35mm) |
| Strain Range | 0.5% (±5000µm/m) |
| Pattern Type | Linear Weldable |
| Length - Overall Pattern | 0.620"" (15.70mm) |
| Width - Active | 0.125"" (3.18mm) |
| Width - Overall Pattern | 0.170"" (4.30mm) |
| Resistance | 350 Ohms |
Request a Quote
Clients Also Buy

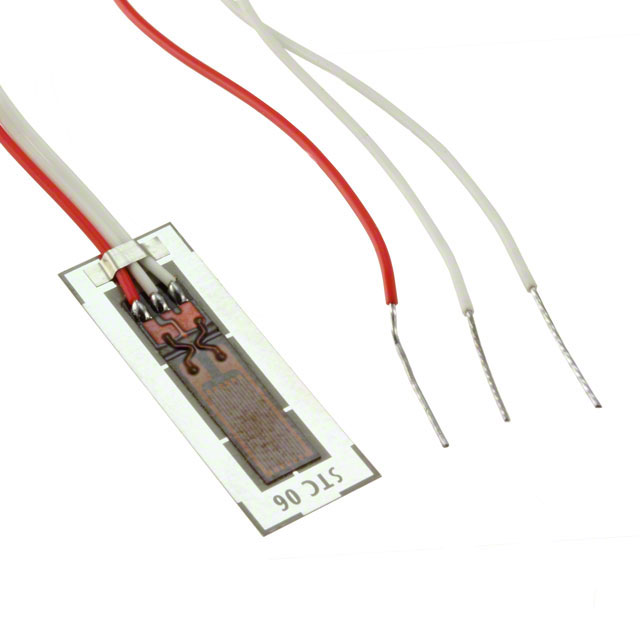

MMF003366
