MMF405965
CEA-09-125UNA-350/SP35 - STRAINManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

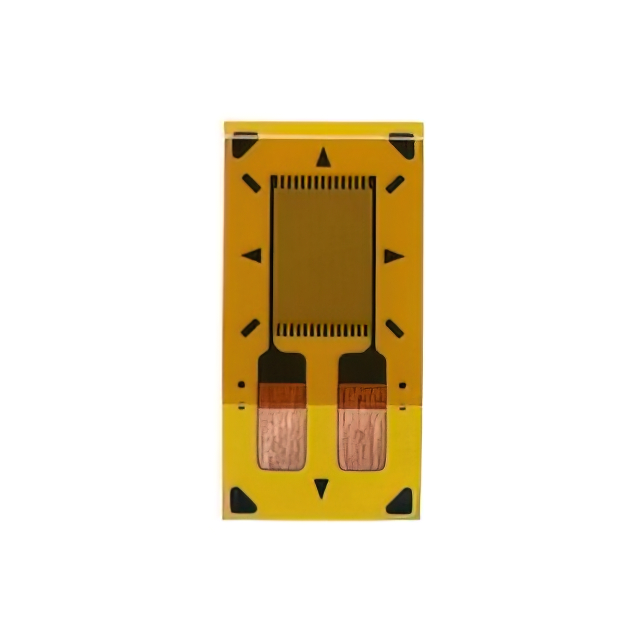

Linear Strain Gauge ±5% 0.125"" (3.18mm) 0.100"" (2.54mm)
Additional Information
Series: CEARoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:&mpn=MMF405965&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bag |
| Operating Temperature | -103 ~ 347°F (-75 ~ 175°C) |
| Length - Overall | 0.38"" (9.7mm) |
| Resistance Tolerance | ±0.2% |
| Width - Overall | 0.19"" (4.8mm) |
| Length - Active | 0.125"" (3.18mm) |
| Strain Range | ±5% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.275"" (6.99mm) |
| Width - Active | 0.100"" (2.54mm) |
| Width - Overall Pattern | 0.120"" (3.05mm) |
| Resistance | 350 Ohms |
Request a Quote
Clients Also Buy

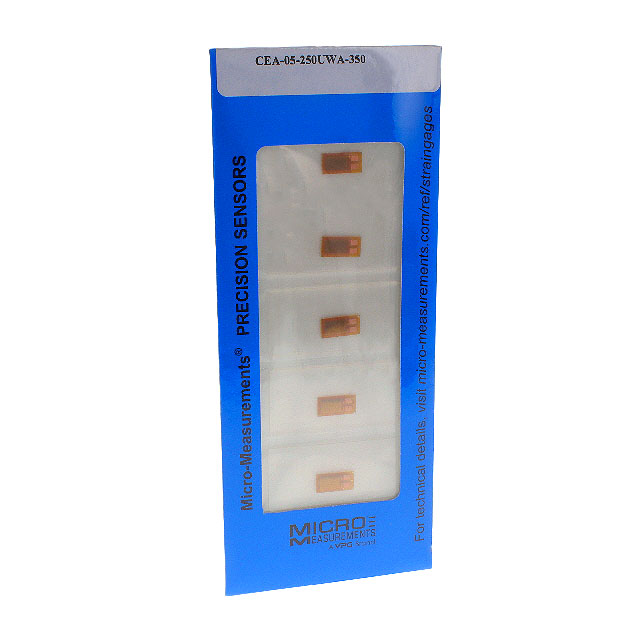

CEA-05-250UWA-350
