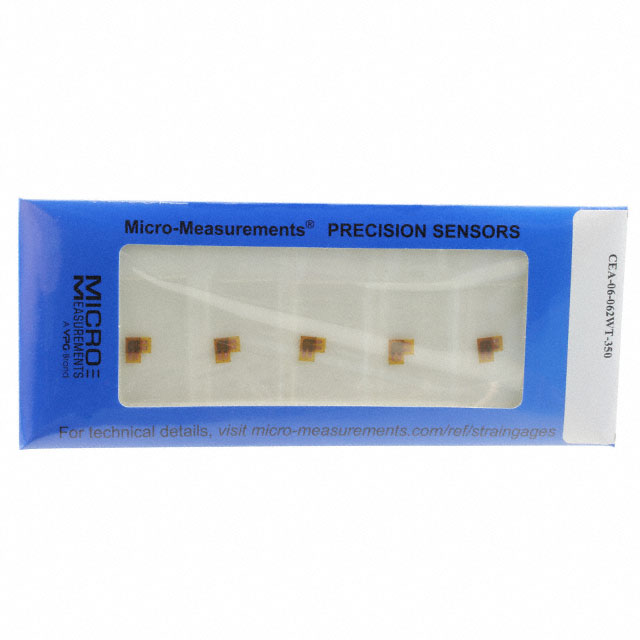

MMF405935
STRAIN GAUGE 350 OHM TEE 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
The Micro-Measurements CEA Series MMF405935 is a 350 Ohm Tee Rosette strain gauge designed for precise measurement applications. This component offers a strain range of ±3% with a resistance tolerance of ±0.5%. The active grid length per section is 0.062 inches (1.57mm), with a width of 0.120 inches (3.05mm) per section. The overall dimensions of the gauge are 0.33 inches (8.3mm) in width and length, with a pattern length of 0.235 inches (5.97mm). The MMF405935 is suitable for operation within an ambient temperature range of -100°F to 150°F (-75°C to 65°C). This strain gauge is commonly utilized in aerospace, automotive testing, and structural analysis industries for its reliability and accuracy in stress and strain evaluation.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF405935&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 150°F (-75 ~ 65°C) |
| Length - Overall | 0.33"" (8.3mm) |
| Resistance Tolerance | ±0.5% |
| Width - Overall | 0.33"" (8.3mm) |
| Length - Active | 0.062"" (1.57mm) per section |
| Strain Range | ±3% |
| Pattern Type | Tee Rosette |
| Length - Overall Pattern | 0.235"" (5.97mm) |
| Width - Active | 0.120"" (3.05mm) per section |
| Width - Overall Pattern | 0.235"" (5.97mm) |
| Resistance | 350 Ohms |
