MMF405745
CEA-06-125URA-120 - STRAIN GAGESManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

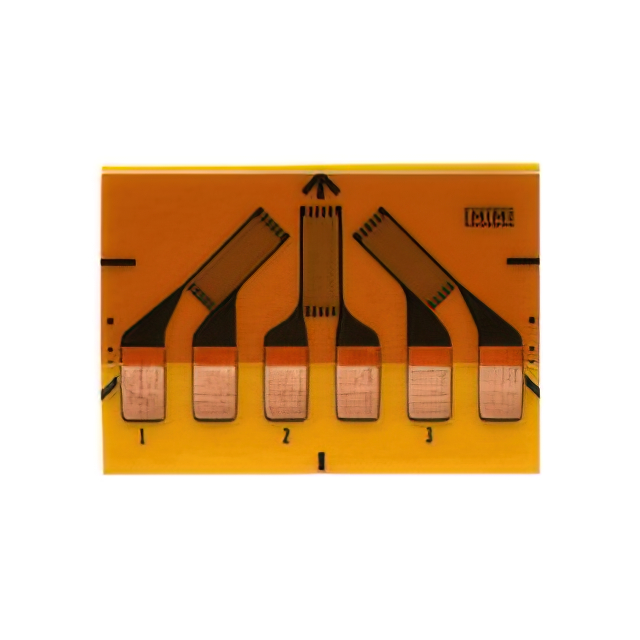

Rectangular Rosette Strain Gauge ±5% 0.125"" (3.18mm) 0.060"" (1.52mm)
Additional Information
Series: CEARoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:&mpn=MMF405745&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bag |
| Operating Temperature | -103 ~ 347°F (-75 ~ 175°C) |
| Length - Overall | 0.42"" (10.7mm) |
| Resistance Tolerance | ±0.2% |
| Width - Overall | 0.62"" (15.7mm) |
| Length - Active | 0.125"" (3.18mm) |
| Strain Range | ±5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.300"" (7.62mm) |
| Width - Active | 0.060"" (1.52mm) |
| Width - Overall Pattern | 0.560"" (14.22mm) |
| Resistance | 120 Ohms |
Request a Quote
