MMF405135
C5K-06-062PR-350-33F - STRAIN GAManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

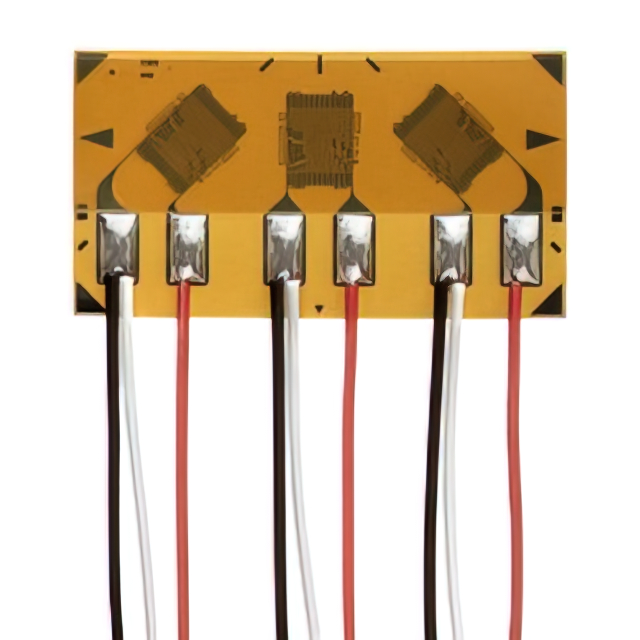

Rectangular Rosette Strain Gauge ±1.5% 0.062"" (1.57mm) 0.062"" (1.57mm)
Additional Information
Series: C5KRoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:&mpn=MMF405135&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bag |
| Operating Temperature | -100 ~ 400°F (-75 ~ 205°C) |
| Length - Overall | 0.25"" (6.4mm) |
| Resistance Tolerance | ±0.2% |
| Width - Overall | 0.46"" (11.7mm) |
| Length - Active | 0.062"" (1.57mm) |
| Strain Range | ±1.5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.180"" (4.57mm) |
| Width - Active | 0.062"" (1.57mm) |
| Width - Overall Pattern | 0.416"" (10.57mm) |
| Resistance | 350 Ohms |
Request a Quote
