MMF404423
C5K-06-062PR-350 - STRAIN GAGESManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

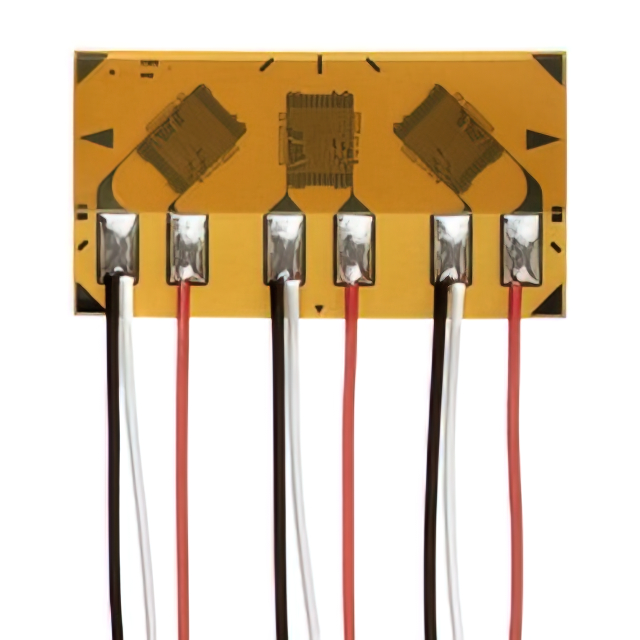

Micro-Measurements C5K Series Rectangular Rosette Strain Gauge, Model MMF404423 (C5K-06-062PR-350), offers a 350 Ohm resistance with tight ±0.2% tolerance. This gauge features an active grid length and width of 0.062 inches (1.57mm) and is designed for a strain range of ±1.5%. The overall pattern dimensions are 0.180 inches (4.57mm) by 0.416 inches (10.57mm), with overall dimensions of 0.25 inches (6.4mm) by 0.46 inches (11.7mm). Operating within a broad temperature range of -75°C to 205°C (-100°F to 400°F), this component is suitable for demanding applications in aerospace, automotive testing, and structural health monitoring. Supplied in a bag.
Additional Information
Series: C5KRoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:&mpn=MMF404423&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bag |
| Operating Temperature | -100 ~ 400°F (-75 ~ 205°C) |
| Length - Overall | 0.25"" (6.4mm) |
| Resistance Tolerance | ±0.2% |
| Width - Overall | 0.46"" (11.7mm) |
| Length - Active | 0.062"" (1.57mm) |
| Strain Range | ±1.5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.180"" (4.57mm) |
| Width - Active | 0.062"" (1.57mm) |
| Width - Overall Pattern | 0.416"" (10.57mm) |
| Resistance | 350 Ohms |
