MMF336118
C2K-06-G1350-350/SP70 STACKED ROManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

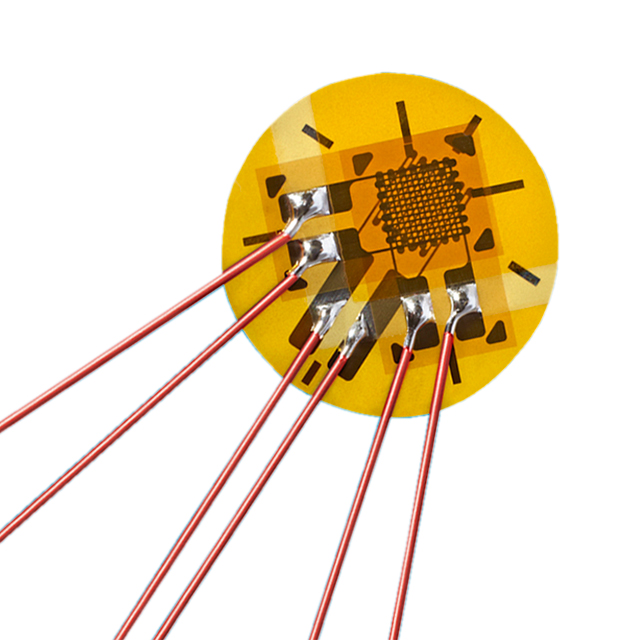

The Micro-Measurements C2K series MMF336118 is a stacked rosette strain gauge with a resistance of 350 Ohms and a resistance tolerance of ±0.8%. This component features an active length of 0.039 inches (1.00mm) per section and an active width of 0.045 inches (1.14mm) per section. The overall dimensions are 0.20 inches (5.1mm) in width and length, with a pattern length of 0.144 inches (3.66mm) and pattern width of 0.147 inches (3.73mm). Designed for a strain range of ±1.5%, it operates within an ambient temperature range of -50 to 65°C. This gauge is commonly utilized in aerospace, automotive testing, and structural monitoring applications where precise strain measurement is critical. It is supplied in Bulk packaging.
Additional Information
Series: C2KRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:&mpn=MMF336118&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -60 ~ 150°F (-50 ~ 65°C) |
| Length - Overall | 0.20"" (5.1mm) |
| Resistance Tolerance | ±0.8% |
| Width - Overall | 0.20"" (5.1mm) |
| Length - Active | 0.039"" (1.00mm) per section |
| Strain Range | ±1.5% |
| Pattern Type | Stacked Rosette |
| Length - Overall Pattern | 0.144"" (3.66mm) |
| Width - Active | 0.045"" (1.14mm) per section |
| Width - Overall Pattern | 0.147"" (3.73mm) |
| Resistance | 350 Ohms |
