MMF323482
C2A-06-G1350-120/SP70 STACKED ROManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

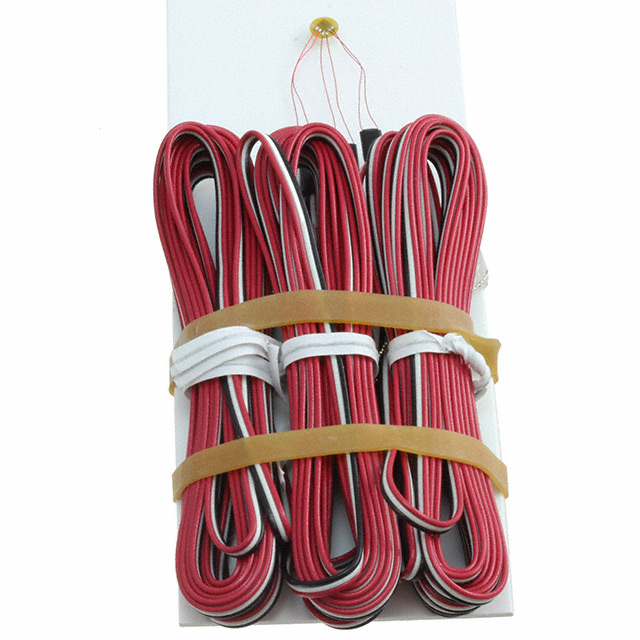

Micro-Measurements C2A Series Stacked Rosette Strain Gauge, part number MMF323482, offers a ±0.6% resistance tolerance for precise strain measurement. This component features an active grid length of 0.039 inches (1.00mm) and an active grid width of 0.045 inches (1.14mm) per section. Designed for demanding applications, it operates within a temperature range of -60 to 150°F (-50 to 65°C) and supports a strain range of ±3%. The overall dimensions are 0.20 inches (5.1mm) with an overall pattern length of 0.144 inches (3.66mm) and width of 0.147 inches (3.73mm). The MMF323482 is commonly utilized in aerospace, automotive, and general industrial testing where accurate stress analysis is critical. It is supplied in bulk packaging.
Additional Information
Series: C2ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF323482&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -60 ~ 150°F (-50 ~ 65°C) |
| Length - Overall | 0.20"" (5.1mm) |
| Resistance Tolerance | ±0.6% |
| Width - Overall | 0.20"" (5.1mm) |
| Length - Active | 0.039"" (1.00mm) per section |
| Strain Range | ±3% |
| Pattern Type | Stacked Rosette |
| Length - Overall Pattern | 0.144"" (3.66mm) |
| Width - Active | 0.045"" (1.14mm) per section |
| Width - Overall Pattern | 0.147"" (3.73mm) |
| Resistance | 120 Ohms |
