MMF307441
C2A-06-125LW-350 STRAIN GAGES (1Manufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

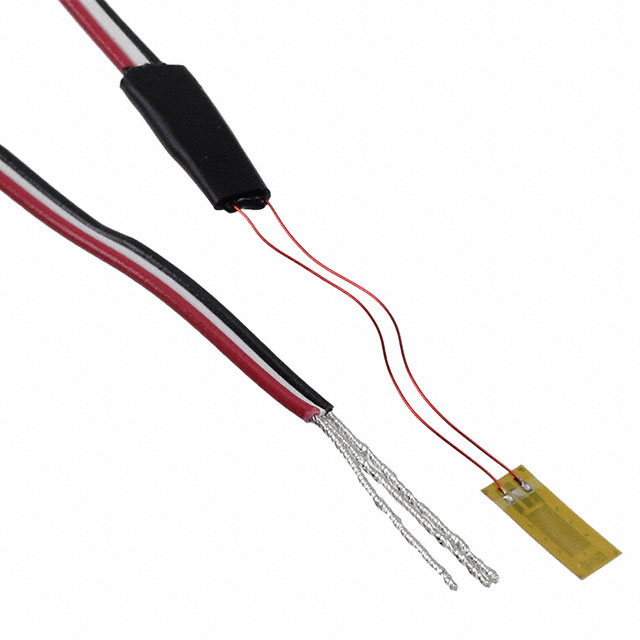

Micro-Measurements C2A Series MMF307441 Linear Strain Gauge. This 350 Ohm gauge features a ±0.6% resistance tolerance and a strain range of ±3%. The active grid dimensions are 0.125 inches (3.18mm) in length and 0.070 inches (1.78mm) in width. Overall dimensions of the sensor are 0.31 inches (8.0mm) with a pattern length of 0.238 inches (6.05mm) and pattern width of 0.080 inches (2.03mm). It operates within a temperature range of -60°F to 180°F (-50°C to 80°C). This component is commonly utilized in aerospace, automotive, and general industrial applications requiring precise strain measurement. Packaged in bulk.
Additional Information
Series: C2ARoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF307441&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -60 ~ 180°F (-50 ~ 80°C) |
| Length - Overall | 0.31"" (8.0mm) |
| Resistance Tolerance | ±0.6% |
| Width - Overall | 0.14"" (3.6mm) |
| Length - Active | 0.125"" (3.18mm) |
| Strain Range | ±3% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.238"" (6.05mm) |
| Width - Active | 0.070"" (1.78mm) |
| Width - Overall Pattern | 0.080"" (2.03mm) |
| Resistance | 350 Ohms |
Request a Quote
Clients Also Buy

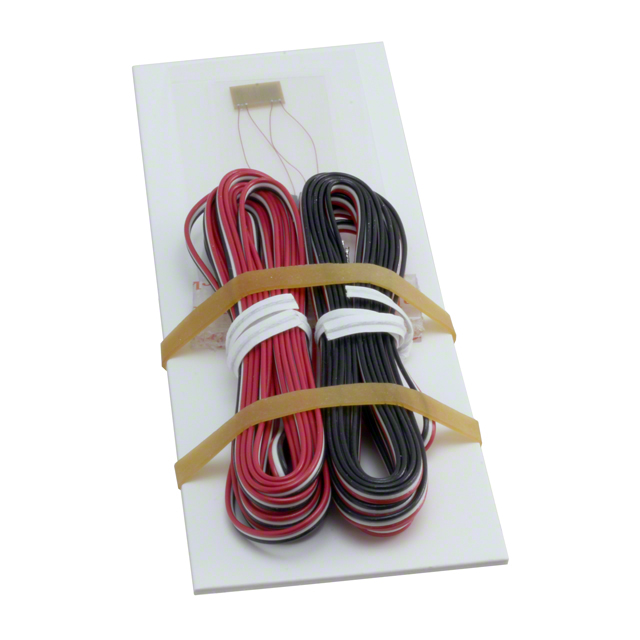

MMF307425
