MMF003672
STRAIN GAUGE 350 OHM TEE 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

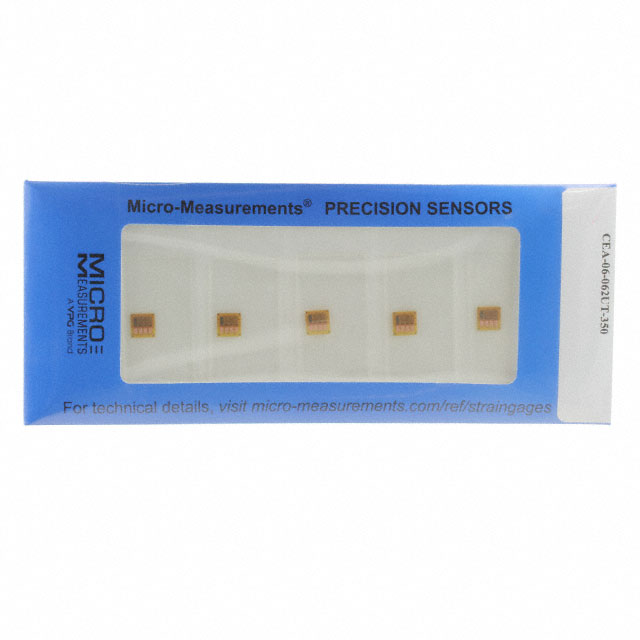

Micro-Measurements CEA Series MMF003672 is a 350 Ohm Tee Rosette strain gauge designed for precise strain analysis. This component offers a strain range of ±3% with a resistance tolerance of ±0.4%. The active grid dimensions are 0.062 inches (1.57mm) and 0.080 inches (2.03mm) per section, providing comprehensive strain measurement capabilities. Operating across a temperature range of -100°F to 350°F (-75°C to 175°C), it is suitable for demanding environments. The overall dimensions are 0.31 inches (7.9mm) with a pattern length of 0.205 inches (5.21mm). This product is commonly utilized in aerospace, automotive, and civil engineering applications requiring accurate structural integrity monitoring and material characterization.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003672&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.31"" (7.9mm) |
| Resistance Tolerance | ±0.4% |
| Width - Overall | 0.31"" (7.9mm) |
| Length - Active | 0.062"" (1.57mm) per section |
| Strain Range | ±3% |
| Pattern Type | Tee Rosette |
| Length - Overall Pattern | 0.205"" (5.21mm) |
| Width - Active | 0.080"" (2.03mm) per section |
| Width - Overall Pattern | 0.225"" (5.72mm) |
| Resistance | 350 Ohms |
