MMF003247

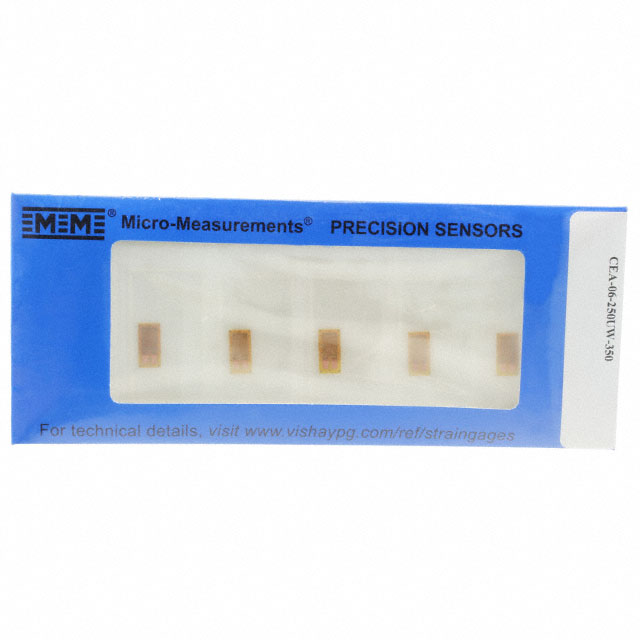

STRAIN GAUGE 350OHM LINEAR 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
The Micro-Measurements CEA series strain gauge, part number MMF003247, is a linear transducer designed for precision measurement applications. This component features a nominal resistance of 350 Ohms with a tight resistance tolerance of ±0.3%. The active grid dimensions are 0.250 inches (6.35mm) in length and 0.180 inches (4.57mm) in width, supporting a strain range of ±5%. The overall pattern length is 0.450 inches (11.43mm), with an overall length of 0.55 inches (14.0mm) and an overall width of 0.27 inches (6.9mm). This strain gauge operates effectively across an extended temperature range of -75°C to 175°C (-100°F to 350°F). It is supplied in bulk packaging and is commonly utilized in aerospace, automotive testing, and structural health monitoring industries.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003247&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.55"" (14.0mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.27"" (6.9mm) |
| Length - Active | 0.250"" (6.35mm) |
| Strain Range | ±5% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.450"" (11.43mm) |
| Width - Active | 0.180"" (4.57mm) |
| Width - Overall Pattern | 0.180"" (4.57mm) |
| Resistance | 350 Ohms |
