MMF003233
STRAIN GAUGE 350 OHM TEE 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

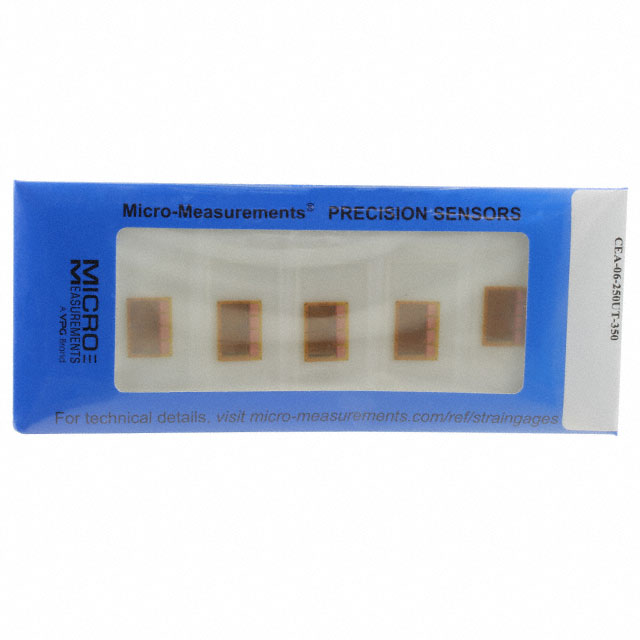

The Micro-Measurements CEA Series Tee Rosette Strain Gauge, part number MMF003233, features a 350 Ohm resistance with a ±0.4% tolerance. This component is designed for applications requiring precise strain measurement, offering an active length of 0.250 inches (6.35mm) per section and a pattern width of 0.650 inches (16.51mm). It supports a strain range of ±5%. The operating temperature range is -100 to 350°F (-75 to 175°C). This strain gauge is utilized across various industries, including aerospace, automotive testing, and structural health monitoring, where accurate stress analysis is critical. It is supplied in Bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003233&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.55"" (14.0mm) |
| Resistance Tolerance | ±0.4% |
| Width - Overall | 0.74"" (18.8mm) |
| Length - Active | 0.250"" (6.35mm) per section |
| Strain Range | ±5% |
| Pattern Type | Tee Rosette |
| Length - Overall Pattern | 0.450"" (11.43mm) |
| Width - Active | 0.290"" (7.37mm) per section |
| Width - Overall Pattern | 0.650"" (16.51mm) |
| Resistance | 350 Ohms |
