MMF003216

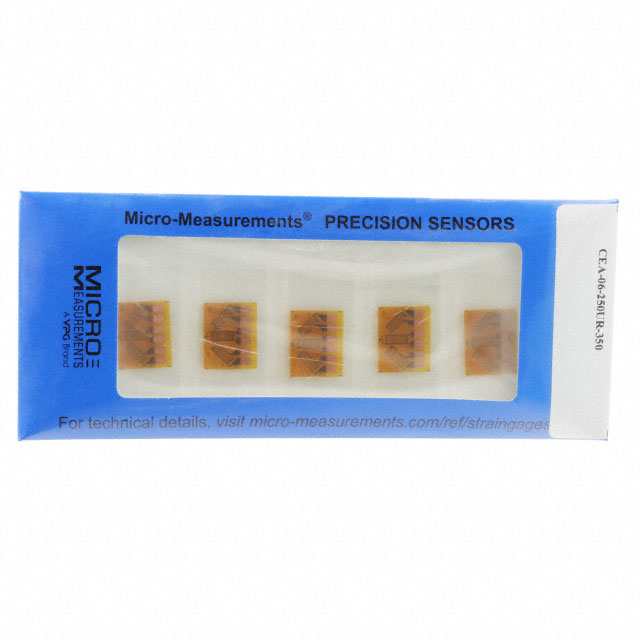

STRAIN GAUGE 350 OHM RECT 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
The Micro-Measurements CEA Series MMF003216 is a 350 Ohm rectangular rosette strain gauge with a resistance tolerance of ±0.4%. Designed for precision measurements, each section features an active length of 0.250 inches (6.35mm) and an active width of 0.120 inches (3.05mm). This component is rated for a strain range of ±5% and operates within an extended temperature range of -100°F to 350°F (-75°C to 175°C). The overall dimensions of the gauge are 0.65 inches (16.5mm) in length and 0.80 inches (20.3mm) in width, with pattern dimensions of 0.500 inches (12.70mm) length and 0.760 inches (19.30mm) width. This strain gauge is suitable for applications in aerospace, automotive testing, and structural health monitoring where accurate strain data is critical. The MMF003216 is supplied in bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003216&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.65"" (16.5mm) |
| Resistance Tolerance | ±0.4% |
| Width - Overall | 0.80"" (20.3mm) |
| Length - Active | 0.250"" (6.35mm) per section |
| Strain Range | ±5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.500"" (12.70mm) |
| Width - Active | 0.120"" (3.05mm) per section |
| Width - Overall Pattern | 0.760"" (19.30mm) |
| Resistance | 350 Ohms |
