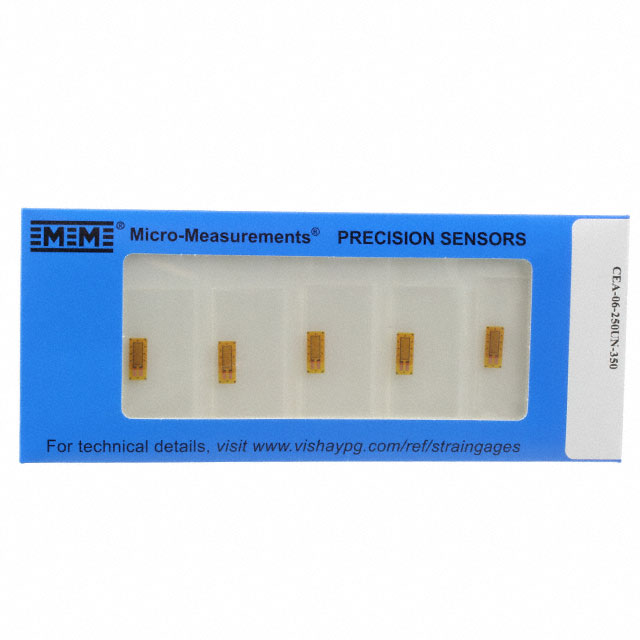

MMF003204
STRAIN GAUGE 350OHM LINEAR 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
Micro-Measurements CEA Series linear strain gauge, part number MMF003204, offers a nominal resistance of 350 Ohms with a tight tolerance of ±0.3%. This gauge features an active length of 0.250 inches (6.35mm) and an active width of 0.120 inches (3.05mm), designed for precise strain measurement applications. The MMF003204 supports a strain range of up to ±5% and operates effectively across a wide temperature range from -100°F to 350°F (-75°C to 175°C). Its linear pattern and robust construction make it suitable for demanding environments, commonly found in aerospace, automotive, and general industrial testing sectors where accurate structural monitoring is critical. The component is supplied in bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003204&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.52"" (13.2mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.22"" (5.6mm) |
| Length - Active | 0.250"" (6.35mm) |
| Strain Range | ±5% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.415"" (10.54mm) |
| Width - Active | 0.120"" (3.05mm) |
| Width - Overall Pattern | 0.120"" (3.05mm) |
| Resistance | 350 Ohms |
