MMF003166

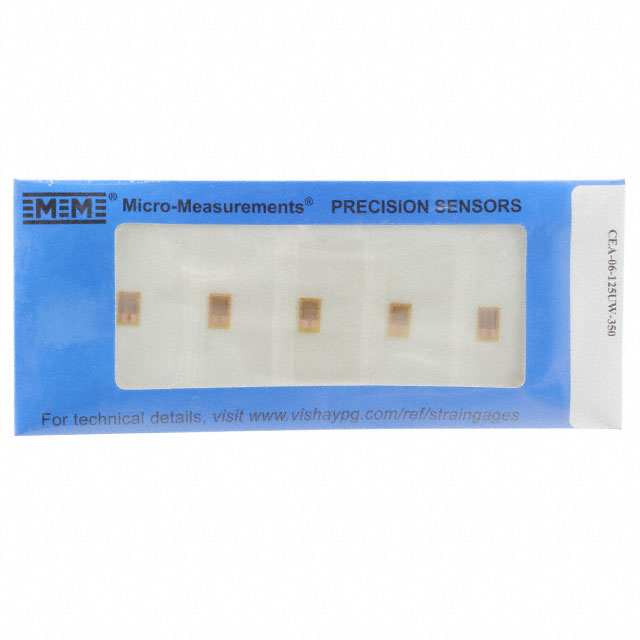

STRAIN GAUGE 350OHM LINEAR 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
Micro-Measurements CEA Series Linear Strain Gauge, part number MMF003166, offers a resistance of 350 Ohms with a tight tolerance of ±0.3%. This gauge features an active length of 0.125 inches (3.18mm) and an active width of 0.180 inches (4.57mm), designed for precise strain measurement up to ±5%. The overall pattern length is 0.325 inches (8.26mm), with an overall length of 0.42 inches (10.7mm). Operating within a temperature range of -100°F to 350°F (-75°C to 175°C), it is suitable for applications in aerospace, automotive testing, and structural analysis where accurate strain data is critical. Supplied in bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003166&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.42"" (10.7mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.27"" (6.9mm) |
| Length - Active | 0.125"" (3.18mm) |
| Strain Range | ±5% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.325"" (8.26mm) |
| Width - Active | 0.180"" (4.57mm) |
| Width - Overall Pattern | 0.180"" (4.57mm) |
| Resistance | 350 Ohms |
Request a Quote
