MMF003153
STRAIN GAUGE 350 OHM TEE 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

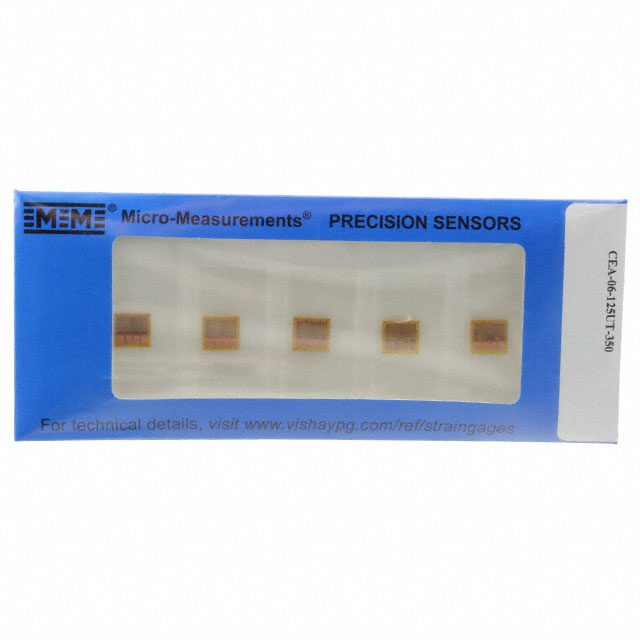

The Micro-Measurements CEA Series MMF003153 is a 350 Ohm Tee Rosette strain gauge designed for precise strain measurement. Each section of the gauge features an active length of 0.125 inches (3.18mm) and an active width of 0.165 inches (4.19mm). The overall dimensions are 0.42 inches (10.7mm) in length and 0.45 inches (11.4mm) in width. This component offers a resistance tolerance of ±0.4% and a strain range of ±5%. Operating within a temperature range of -100 to 350°F (-75 to 175°C), the MMF003153 is suitable for applications in aerospace, automotive testing, and structural analysis where accurate strain data is critical for performance validation and structural integrity monitoring. The pattern type is a Tee Rosette, and it is supplied in Bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003153&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.42"" (10.7mm) |
| Resistance Tolerance | ±0.4% |
| Width - Overall | 0.45"" (11.4mm) |
| Length - Active | 0.125"" (3.18mm) per section |
| Strain Range | ±5% |
| Pattern Type | Tee Rosette |
| Length - Overall Pattern | 0.325"" (8.26mm) |
| Width - Active | 0.165"" (4.19mm) per section |
| Width - Overall Pattern | 0.365"" (9.27mm) |
| Resistance | 350 Ohms |
