MMF003141

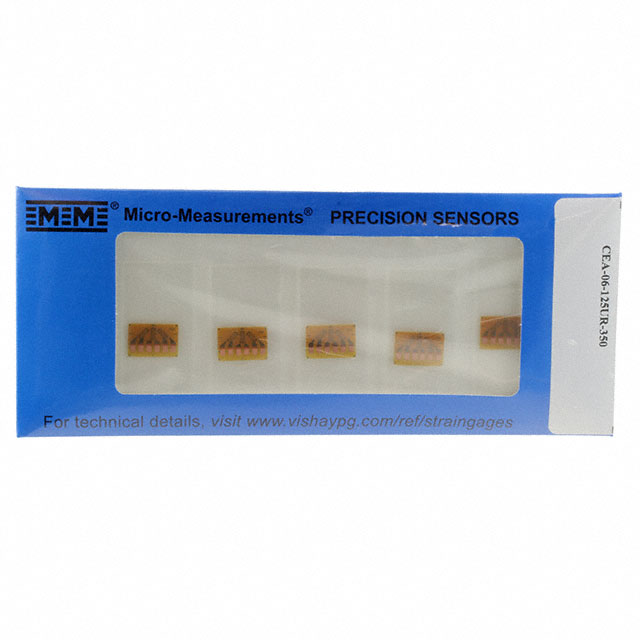

STRAIN GAUGE 350 OHM RECT 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
Micro-Measurements CEA Series rectangular rosette strain gauge, part number MMF003141, offers 350 Ohms resistance with a ±0.4% tolerance. Each section of the rosette features an active length of 0.125 inches (3.18mm) and an active width of 0.060 inches (1.52mm). The gauge supports a strain range of ±5%. Its overall dimensions are 0.42 inches (10.7mm) in length and 0.62 inches (15.7mm) in width, with a pattern length of 0.300 inches (7.62mm) and a pattern width of 0.560 inches (14.22mm). Operating temperature range is -100 to 350°F (-75 to 175°C). This component is commonly utilized in aerospace, automotive, and structural testing applications. Supplied in bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003141&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.42"" (10.7mm) |
| Resistance Tolerance | ±0.4% |
| Width - Overall | 0.62"" (15.7mm) |
| Length - Active | 0.125"" (3.18mm) per section |
| Strain Range | ±5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.300"" (7.62mm) |
| Width - Active | 0.060"" (1.52mm) per section |
| Width - Overall Pattern | 0.560"" (14.22mm) |
| Resistance | 350 Ohms |
