MMF003133

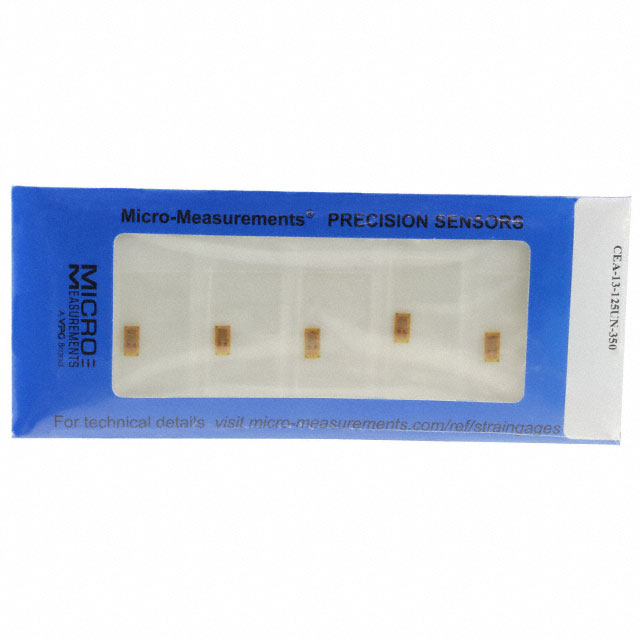

STRAIN GAUGE 350OHM LINEAR 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
Micro-Measurements CEA Series linear strain gauge, part number MMF003133, offers a nominal resistance of 350 Ohms with a resistance tolerance of ±0.3%. This component features an active sensing grid with a length of 0.125 inches (3.18mm) and a width of 0.100 inches (2.54mm). The strain gauge is designed for a strain range of ±5% and operates within a temperature range of -75°C to 175°C (-100°F to 350°F). The overall pattern dimensions are 0.275 inches (6.99mm) in length and 0.120 inches (3.05mm) in width, with overall dimensions of 0.38 inches (9.7mm) by 0.19 inches (4.8mm). Packaged in bulk, this linear strain gauge is utilized in applications requiring precise measurement of applied strain, including aerospace, automotive testing, and industrial machinery monitoring.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003133&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.38"" (9.7mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.19"" (4.8mm) |
| Length - Active | 0.125"" (3.18mm) |
| Strain Range | ±5% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.275"" (6.99mm) |
| Width - Active | 0.100"" (2.54mm) |
| Width - Overall Pattern | 0.120"" (3.05mm) |
| Resistance | 350 Ohms |
