MMF003129
STRAIN GAUGE 350OHM LINEAR 1=5PSManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More

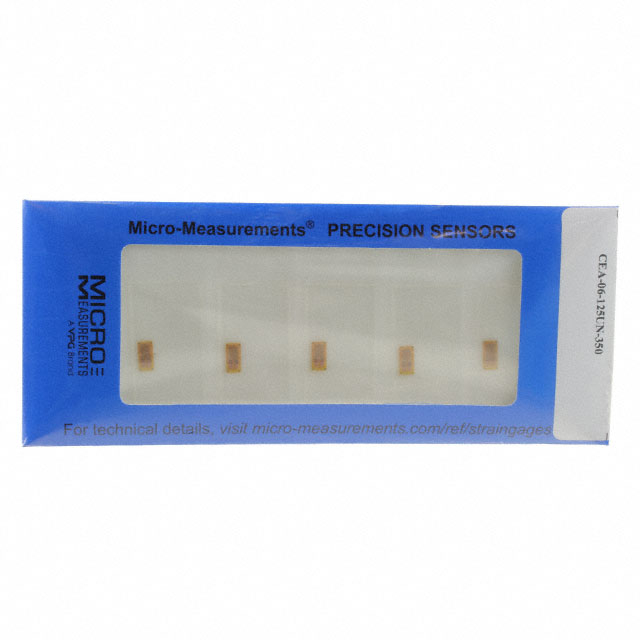

Micro-Measurements CEA Series Linear Strain Gauge, part number MMF003129, offers a nominal resistance of 350 Ohms with a ±0.3% tolerance. This gauge features an active length of 0.125 inches (3.18mm) and an active width of 0.100 inches (2.54mm), designed for precise strain measurement. The overall pattern length is 0.275 inches (6.99mm). It supports a strain range of ±5% and operates reliably across a temperature spectrum of -75°C to 175°C (-100°F to 350°F). This component is commonly utilized in aerospace, automotive, and industrial monitoring applications where accurate strain data is critical for performance analysis and structural integrity. Packaged in bulk, it is suitable for high-volume integration into test and measurement systems.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003129&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.38"" (9.7mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.19"" (4.8mm) |
| Length - Active | 0.125"" (3.18mm) |
| Strain Range | ±5% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.275"" (6.99mm) |
| Width - Active | 0.100"" (2.54mm) |
| Width - Overall Pattern | 0.120"" (3.05mm) |
| Resistance | 350 Ohms |
