MMF003114

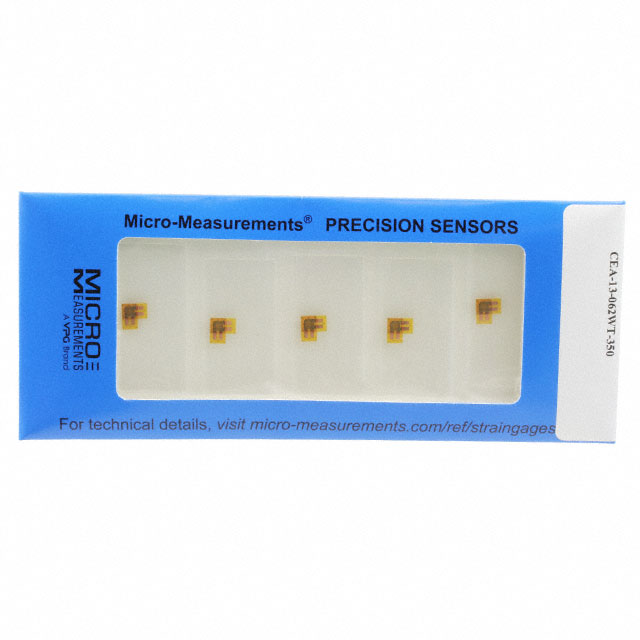

STRAIN GAUGE 350 OHM TEE 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
Micro-Measurements CEA Series Tee Rosette Strain Gauge, part number MMF003114, offers a 350 Ohm resistance with a ±0.5% tolerance. This gauge features a tee configuration with active grid lengths of 0.062 inches (1.57mm) per section and active grid widths of 0.120 inches (3.05mm) per section. The overall pattern measures 0.235 inches (5.97mm) in length and width, with the overall gauge dimensions at 0.33 inches (8.3mm) for both length and width. Designed for accurate strain measurement, it supports a strain range of ±3%. The MMF003114 operates within a temperature range of -100 to 150°F (-75 to 65°C). This component is commonly utilized in aerospace, automotive, and general industrial applications for structural analysis and performance monitoring. Packaged in bulk.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003114&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 150°F (-75 ~ 65°C) |
| Length - Overall | 0.33"" (8.3mm) |
| Resistance Tolerance | ±0.5% |
| Width - Overall | 0.33"" (8.3mm) |
| Length - Active | 0.062"" (1.57mm) per section |
| Strain Range | ±3% |
| Pattern Type | Tee Rosette |
| Length - Overall Pattern | 0.235"" (5.97mm) |
| Width - Active | 0.120"" (3.05mm) per section |
| Width - Overall Pattern | 0.235"" (5.97mm) |
| Resistance | 350 Ohms |
