MMF003101

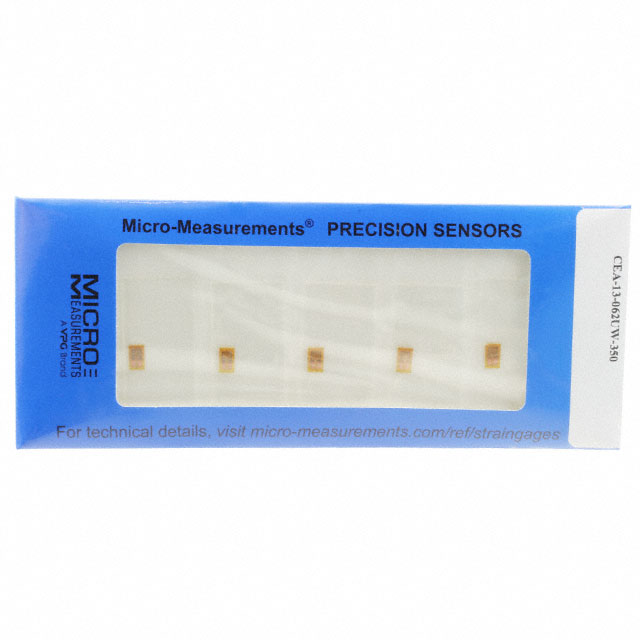

STRAIN GAUGE 350OHM LINEAR 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
The Micro-Measurements CEA Series MMF003101 is a linear strain gauge featuring a 350 Ohm resistance with a ±0.3% tolerance. Designed for precision measurement, this component offers a ±3% strain range and an active grid length of 0.062 inches (1.57mm). Its overall dimensions are 0.31 inches (7.9mm), with a pattern length of 0.220 inches (5.59mm) and an active width of 0.120 inches (3.05mm). The gauge operates effectively across a temperature range of -100°F to 350°F (-75°C to 175°C). This component is suitable for applications in aerospace, automotive testing, and industrial monitoring where accurate strain data is critical. Supplied in bulk packaging, the MMF003101 is a reliable choice for demanding measurement tasks.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003101&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.31"" (7.9mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.19"" (4.8mm) |
| Length - Active | 0.062"" (1.57mm) |
| Strain Range | ±3% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.220"" (5.59mm) |
| Width - Active | 0.120"" (3.05mm) |
| Width - Overall Pattern | 0.120"" (3.05mm) |
| Resistance | 350 Ohms |
Request a Quote
