MMF003096

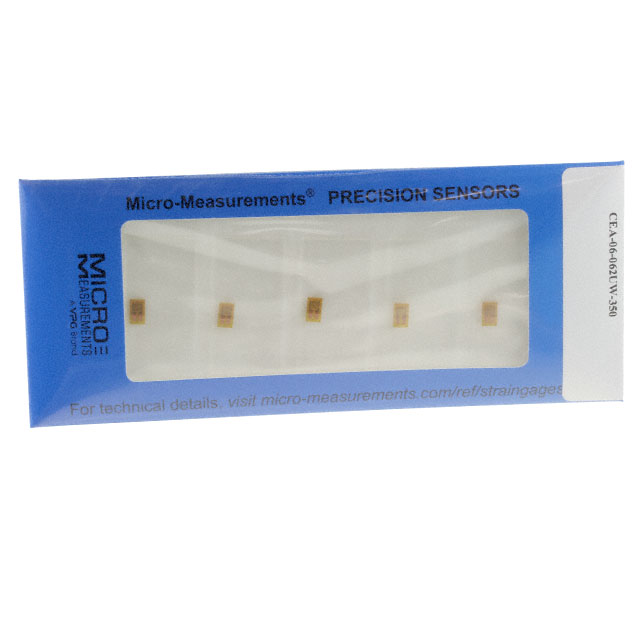

STRAIN GAUGE 350OHM LINEAR 1=5PCManufacturer: Micro-Measurements (Division of Vishay Precision Group)
Categories: Strain Gauges
Quality Control: Learn More
The Micro-Measurements CEA series strain gauge, part number MMF003096, offers a nominal resistance of 350 Ohms with a tight resistance tolerance of ±0.3%. This linear transducer features an active gauge length of 0.062 inches (1.57mm) and an active width of 0.120 inches (3.05mm), facilitating precise strain measurement. The overall gauge dimensions are 0.31 inches (7.9mm) in length and 0.19 inches (4.8mm) in width, with an overall pattern length of 0.220 inches (5.59mm). Designed for a broad operating temperature range from -100°F to 350°F (-75°C to 175°C), it can accommodate a strain range of ±3%. This component is commonly utilized in aerospace, automotive testing, and structural health monitoring applications where accurate strain data is critical. Supplied in bulk packaging.
Additional Information
Series: CEARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=MMF003096&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
| Length - Overall | 0.31"" (7.9mm) |
| Resistance Tolerance | ±0.3% |
| Width - Overall | 0.19"" (4.8mm) |
| Length - Active | 0.062"" (1.57mm) |
| Strain Range | ±3% |
| Pattern Type | Linear |
| Length - Overall Pattern | 0.220"" (5.59mm) |
| Width - Active | 0.120"" (3.05mm) |
| Width - Overall Pattern | 0.120"" (3.05mm) |
| Resistance | 350 Ohms |
Request a Quote
