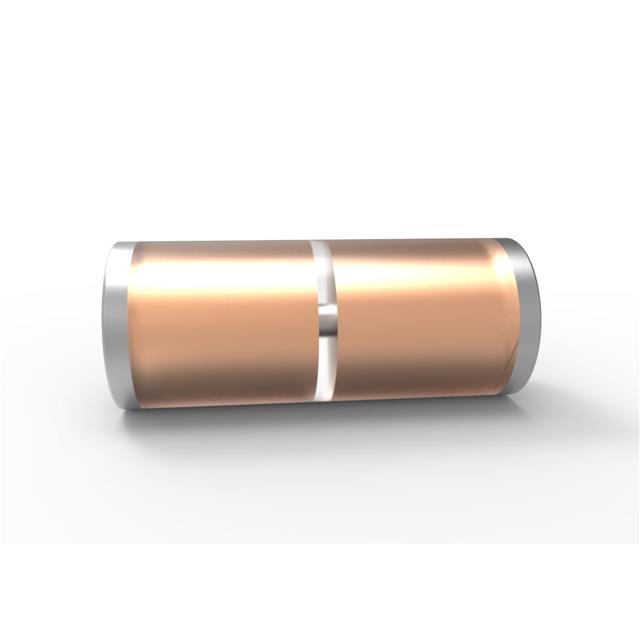

DL5234B-TP
DIODE ZENER 6.2V 500MW MINI MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL5234B-TP is a 6.2V Zener diode with a power rating of 500mW. This component offers a tight ±5% voltage tolerance and a maximum Zener impedance of 7 Ohms. Designed for surface mounting, it utilizes the DO-213AC, MINI-MELF, SOD-80 package. The diode exhibits a low reverse leakage current of 5 µA at 4V and a forward voltage of 1.1V at 200mA. Operating across a wide temperature range from -65°C to 175°C, the DL5234B-TP is suitable for applications in automotive, industrial control, and telecommunications sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 6.2 V |
| Impedance (Max) (Zzt) | 7 Ohms |
| Supplier Device Package | Mini MELF |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 4 V |
