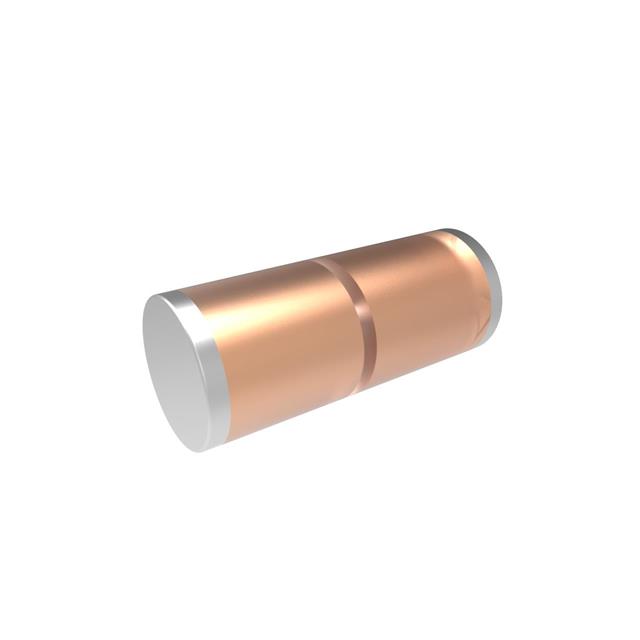

DL4761A-TP
DIODE ZENER 75V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL4761A-TP is a 1W Zener diode with a nominal breakdown voltage of 75V and a ±5% tolerance. This surface mount component, housed in a DO-213AB MELF package, features a maximum forward voltage of 1.2V at 200mA and a reverse leakage current of 5µA at 56V. Its impedance is rated at a maximum of 175 Ohms. The DL4761A-TP operates reliably across a wide temperature range of -65°C to 175°C. It is supplied in Tape & Reel packaging, suitable for high-volume automated assembly. This component finds application in power supply regulation, voltage clamping, and surge protection circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 75 V |
| Impedance (Max) (Zzt) | 175 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 56 V |
