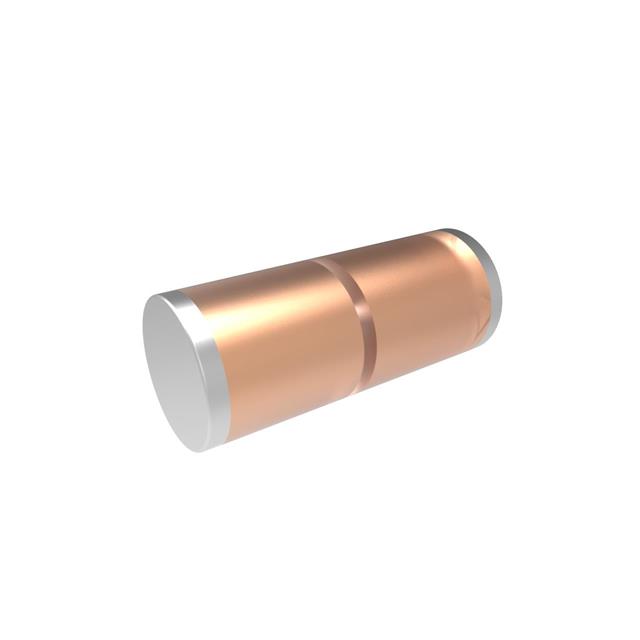

DL4759A-TP
DIODE ZENER 62V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL4759A-TP is a 1W Zener diode designed for precision voltage regulation. Featuring a 62V nominal Zener voltage with a ±5% tolerance, this component offers excellent stability. Its MELF (MELF) package, specifically the DO-213AB, ensures robust performance and efficient heat dissipation, suitable for demanding applications. The diode exhibits a low reverse leakage of 5 µA at 47.1V and a maximum impedance of 125 Ohms, critical for high-frequency and sensitive circuit designs. With a maximum power rating of 1W and an operating temperature range of -65°C to 175°C, it is well-suited for use in telecommunications, industrial control systems, and power supply circuits. This device is supplied in Tape & Reel (TR) packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 62 V |
| Impedance (Max) (Zzt) | 125 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 47.1 V |
