DL4758A-TP
DIODE ZENER 56V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More

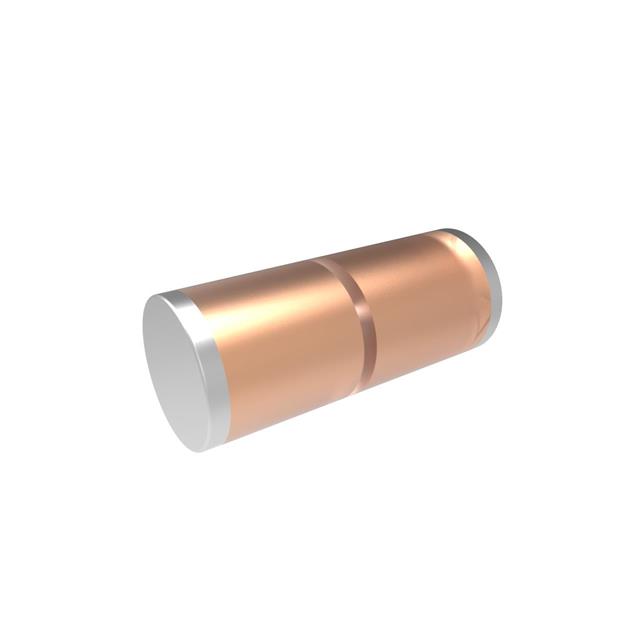

Micro Commercial Co DL4758A-TP is a 1W Zener diode featuring a 56V nominal breakdown voltage with a ±5% tolerance. This device is housed in a DO-213AB MELF package, suitable for surface mount applications and supplied on tape and reel. With a maximum power dissipation of 1W and an operating temperature range of -65°C to 175°C, it offers robust performance. The DL4758A-TP exhibits a low reverse leakage current of 5 µA at 42.6V and a maximum Zener impedance (Zzt) of 110 Ohms. Its forward voltage (Vf) is rated at a maximum of 1.2V at 200 mA. This component is commonly utilized in power supply regulation, voltage clamping, and surge protection circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 56 V |
| Impedance (Max) (Zzt) | 110 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 42.6 V |
