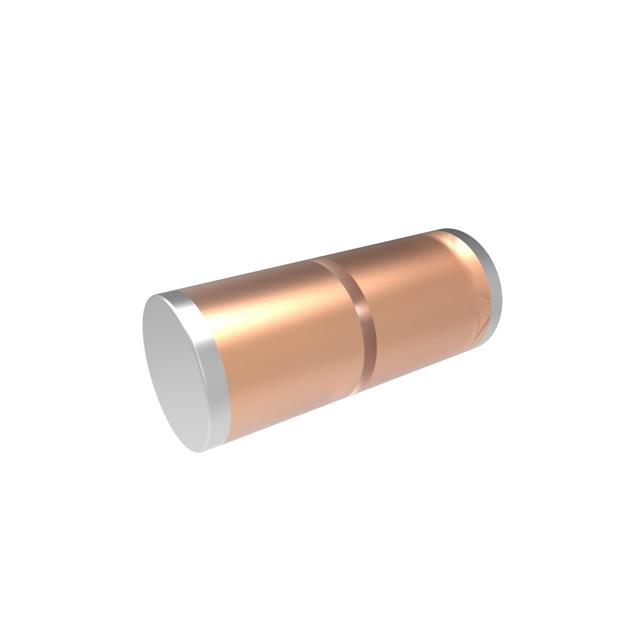

DL4757A-TP
DIODE ZENER 51V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL4757A-TP is a 1W Zener Diode with a nominal breakdown voltage of 51V and a tolerance of ±5%. This MELF package device, DO-213AB, offers a reverse leakage current of 5 µA at 38.8V and a maximum Zener impedance of 95 Ohms. Featuring a forward voltage of 1.2V at 200mA, it operates across a wide temperature range from -65°C to 175°C. The DL4757A-TP is suitable for applications in power supply regulation and voltage clamping within the automotive and industrial sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 51 V |
| Impedance (Max) (Zzt) | 95 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 38.8 V |
