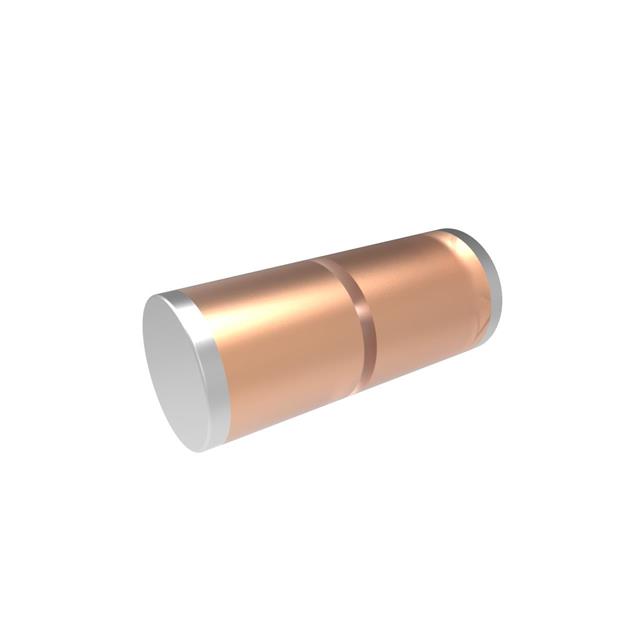

DL4755A-TP
DIODE ZENER 43V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL4755A-TP is a 1W Zener diode with a nominal breakdown voltage of 43V and a ±5% tolerance. This component features a low reverse leakage current of 5 µA at 32.7V and a maximum Zener impedance of 70 Ohms. With a forward voltage of 1.2V at 200mA, it is suitable for power regulation and voltage clamping applications. The DL4755A-TP is housed in a DO-213AB MELF package, designed for surface mounting and supplied on tape and reel for automated assembly. Its operating temperature range is -65°C to 175°C, making it a robust choice for demanding environments across various industrial sectors, including automotive, telecommunications, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 43 V |
| Impedance (Max) (Zzt) | 70 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 32.7 V |
