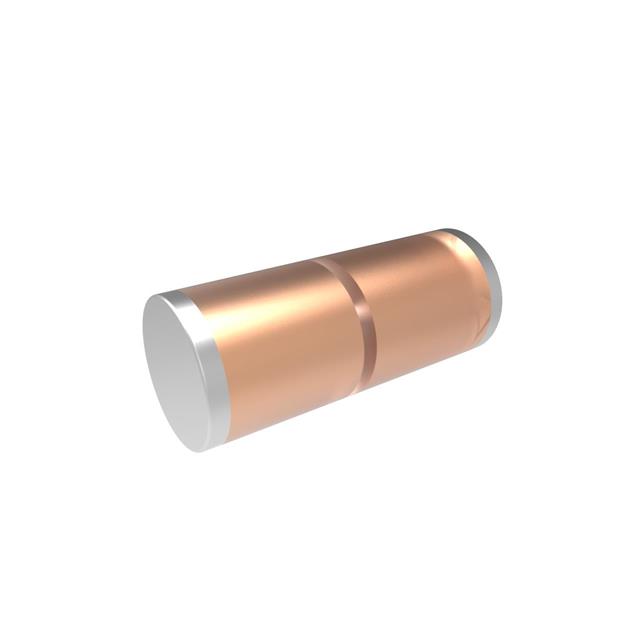

DL4736A-TP
DIODE ZENER 6.8V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL4736A-TP is a 1W Zener diode with a nominal breakdown voltage of 6.8V and a ±5% tolerance. This component features a low reverse leakage current of 10 µA at 4V and a maximum Zener impedance (Zzt) of 3.5 Ohms. It is housed in a DO-213AB, MELF package designed for surface mounting and operates across a wide temperature range from -65°C to 175°C. The forward voltage (Vf) is a maximum of 1.2V at 200mA. This device is commonly utilized in power supply regulation and voltage clamping applications across various industrial sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 6.8 V |
| Impedance (Max) (Zzt) | 3.5 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 4 V |
