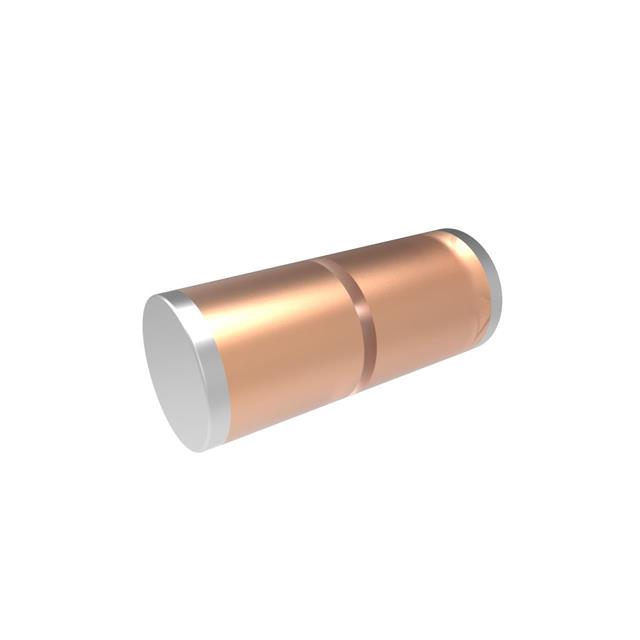

DL4733A-TP
DIODE ZENER 5.1V 1W MELFManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co DL4733A-TP is a 1W Zener diode with a 5.1V nominal breakdown voltage and a ±5% tolerance. This MELF package device, designated DO-213AB, offers a low reverse leakage current of 10 µA at 1V and a maximum impedance of 7 Ohms. It features a forward voltage of 1.2V at 200mA and is designed for surface mount applications. The operating temperature range is from -65°C to 175°C. This component is commonly utilized in power supply regulation, voltage clamping, and voltage reference circuits across various industrial and consumer electronics sectors. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
| Impedance (Max) (Zzt) | 7 Ohms |
| Supplier Device Package | MELF |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 1 V |
