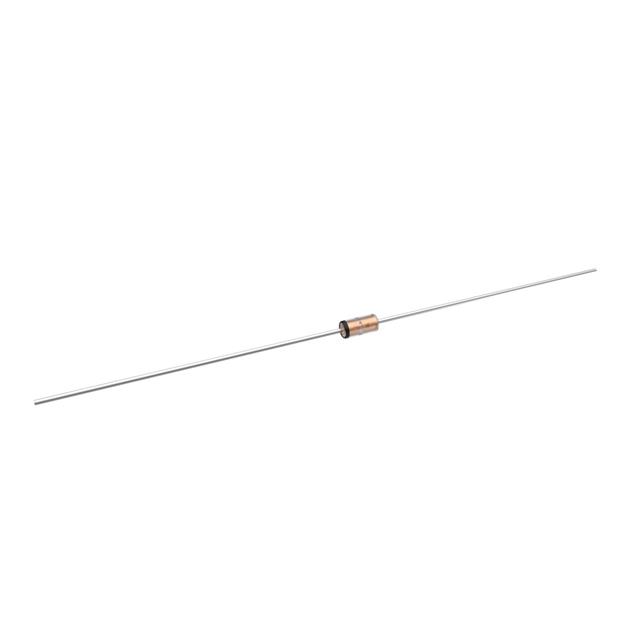

1N6011B-TP
DIODE ZENER 30V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co 1N6011B-TP is a 30V Zener Diode with a power rating of 500 mW. This component features a ±5% voltage tolerance and a maximum Zener impedance (Zzt) of 78 Ohms. The forward voltage (Vf) is a maximum of 1.5 V at 100 mA, with a reverse leakage current of 100 nA at 23 V. Designed for through-hole mounting, it is housed in a DO-35 (DO-204AH, DO-35, Axial) package. Operating temperature ranges from -65°C to 200°C. This device is commonly utilized in voltage regulation and surge suppression applications across various industrial and consumer electronics sectors. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 200°C |
| Voltage - Zener (Nom) (Vz) | 30 V |
| Impedance (Max) (Zzt) | 78 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 23 V |
