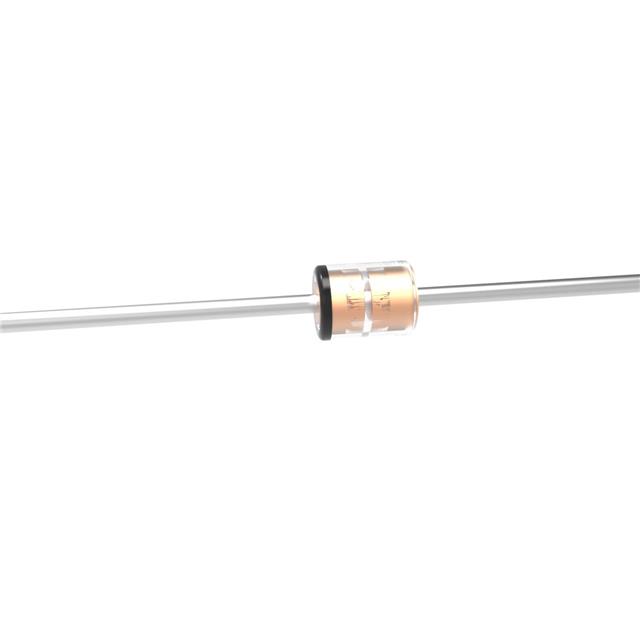

1N5925B-TP
DIODE ZENER 1.5W DO-41GManufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Zener Diode 10 V 1.5 W ±5% Through Hole DO-41G
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C |
| Voltage - Zener (Nom) (Vz) | 10 V |
| Impedance (Max) (Zzt) | 4.5 Ohms |
| Supplier Device Package | DO-41G |
| Power - Max | 1.5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 8 V |
