1N5231B-TP
DIODE ZENER 5.1V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More

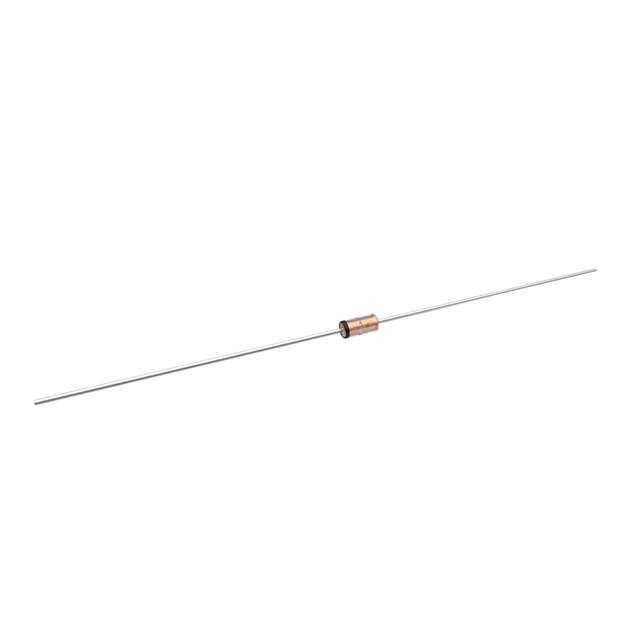

Micro Commercial Co 1N5231B-TP is a 5.1V Zener diode with a power rating of 500mW. This through-hole component features a ±5% voltage tolerance and is housed in a DO-35 (DO-204AH, DO-35) axial package. Key specifications include a maximum forward voltage of 1.1V at 200mA and a reverse leakage of 5µA at 2V. The Zener impedance (Zzt) is a maximum of 17 Ohms. Operating temperature range is from -55°C to 150°C. This component is commonly utilized in voltage regulation and surge suppression applications across various industries including telecommunications and industrial control systems. Packaging is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
| Impedance (Max) (Zzt) | 17 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 2 V |
