1N5228B-TP
DIODE ZENER 3.9V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More

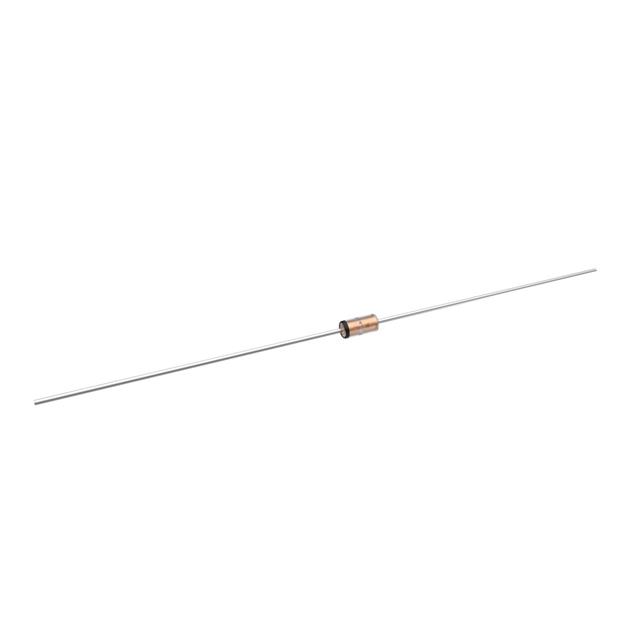

Micro Commercial Co 1N5228B-TP is a 3.9V Zener diode with a power rating of 500 mW. This axial component, housed in a DO-35 (DO-204AH) package, offers a ±5% voltage tolerance. Key specifications include a maximum forward voltage of 1.1 V at 200 mA and a reverse leakage current of 10 µA at 1 V. The Zener impedance (Zzt) is specified at a maximum of 23 Ohms. Operating across a temperature range of -55°C to 150°C, this device is suitable for various applications in power regulation and voltage stabilization circuits within the consumer electronics and industrial automation sectors. The part is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C |
| Voltage - Zener (Nom) (Vz) | 3.9 V |
| Impedance (Max) (Zzt) | 23 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 1 V |
