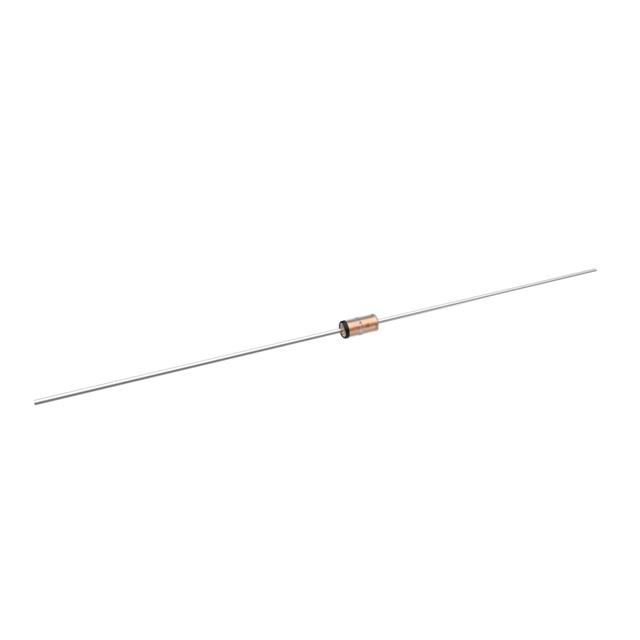

1N4626-TP
DIODE ZENER 5.6V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co's 1N4626-TP is a 5.6V Zener diode with a power rating of 500mW. This axial-leaded component, housed in a DO-35 (DO-204AH) package, offers a ±5% voltage tolerance. Key electrical specifications include a maximum forward voltage (Vf) of 1.1V at 200mA and a reverse leakage current of 10µA at 4V. The Zener impedance (Zzt) is rated at 1400 Ohms maximum. Operating at an extended junction temperature up to 175°C, this device is commonly deployed in voltage regulation and transient suppression applications across industrial, automotive, and consumer electronics sectors. The part is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Impedance (Max) (Zzt) | 1400 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 4 V |
