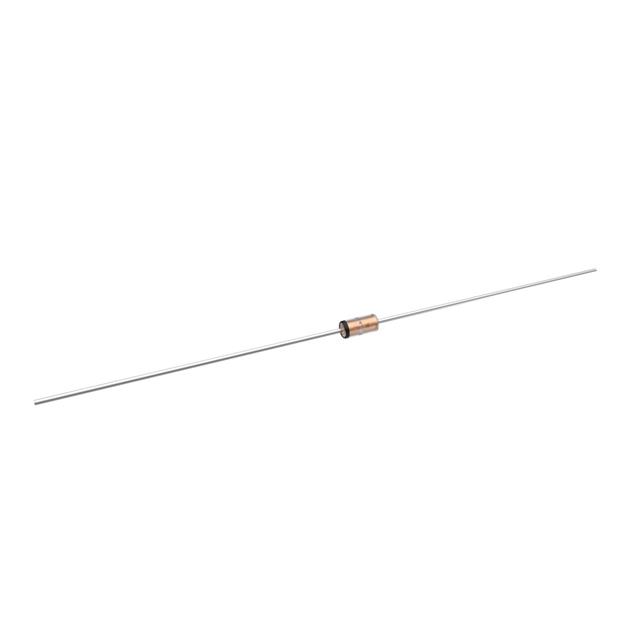

1N4623-TP
DIODE ZENER 4.3V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co 1N4623-TP is a 4.3V Zener diode with a power rating of 500 mW. This component features a ±5% voltage tolerance and a low reverse leakage current of 4 µA at 2V. The Zener impedance at test current is a maximum of 1600 Ohms. Designed for through-hole mounting, it utilizes the axial DO-204AH, DO-35 package. The operating temperature range extends to 175°C (TJ). The forward voltage (Vf) is 1.1 V at 200 mA. This diode is commonly found in applications within the consumer electronics and industrial sectors. The 1N4623-TP is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 4.3 V |
| Impedance (Max) (Zzt) | 1600 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 4 µA @ 2 V |
