1N4124-TP
DIODE ZENER 43V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More

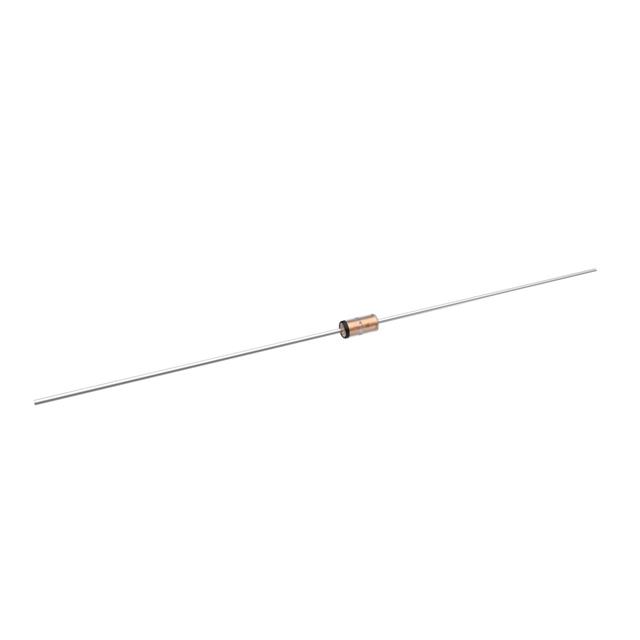

Micro Commercial Co 1N4124-TP is a 43V Zener diode with a power rating of 500 mW. This axial-leaded device features a ±5% tolerance and is housed in a DO-35 (DO-204AH) package. It exhibits a maximum reverse leakage current of 10 nA at 32.65 V and a Zener impedance (Zzt) of 250 Ohms. The forward voltage (Vf) is 1.1 V at 200 mA, and it operates within a temperature range of -55°C to 175°C. This component is commonly utilized in power supply regulation and voltage clamping applications across various industrial sectors. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 43 V |
| Impedance (Max) (Zzt) | 250 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 nA @ 32.65 V |
