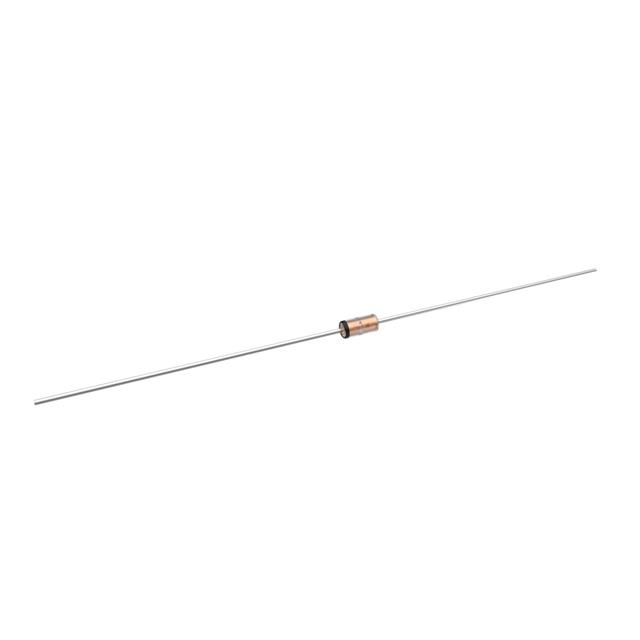

1N4123-TP
DIODE ZENER 39V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
This Micro Commercial Co. Zener Diode, part number 1N4123-TP, offers a 39V nominal breakdown voltage with a power rating of 500 mW. Fabricated in a DO-35 axial package, this component features a ±5% tolerance and a low reverse leakage of 10 nA at 29.65 V. The device exhibits a maximum impedance of 200 Ohms and a forward voltage of 1.1 V at 200 mA. Designed for through-hole mounting and supplied on tape and reel (TR), it operates within an extended temperature range of -55°C to 175°C. This component is suitable for applications requiring precise voltage regulation and overvoltage protection across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 39 V |
| Impedance (Max) (Zzt) | 200 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 nA @ 29.65 V |
