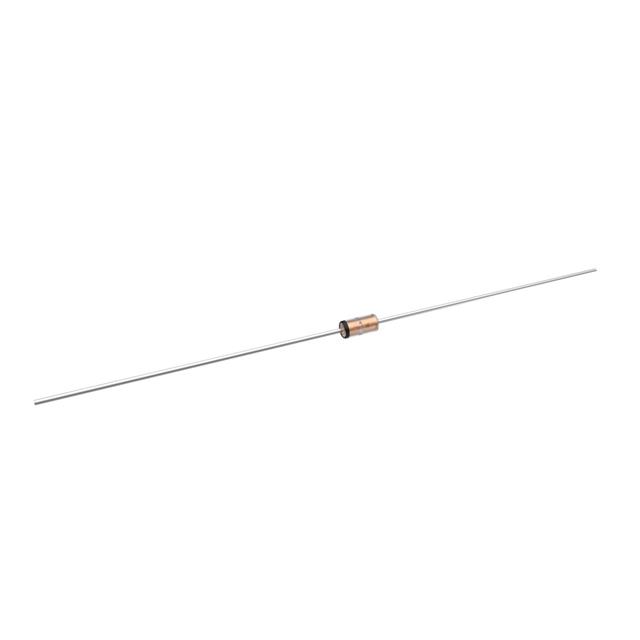

1N4121-TP
DIODE ZENER 33V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co 1N4121-TP is a 33V Zener diode designed for voltage regulation applications. This component features a 500 mW power dissipation capability and a ±5% voltage tolerance. The axial DO-35 package facilitates through-hole mounting. With a maximum reverse leakage current of 10 nA at 25.08 V and a Zzt impedance of 200 Ohms, it provides stable voltage reference. The operating temperature range extends to 175°C (TJ). This device is commonly utilized in industrial control systems, power supplies, and automotive electronics where reliable voltage regulation is critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 33 V |
| Impedance (Max) (Zzt) | 200 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 nA @ 25.08 V |
