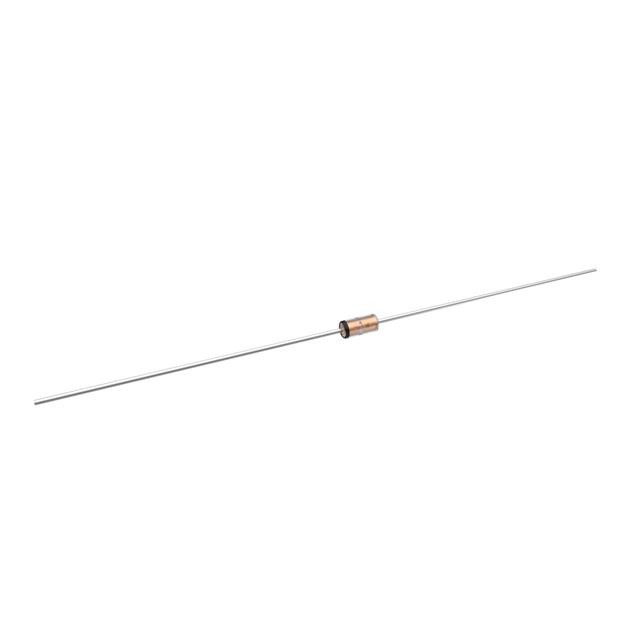

1N4120-TP
DIODE ZENER 30V 500MW DO35Manufacturer: Micro Commercial Co
Categories: Single Zener Diodes
Quality Control: Learn More
Micro Commercial Co 1N4120-TP is a 30V Zener diode with a power rating of 500mW. This component features a ±5% tolerance and a maximum Zener impedance (Zzt) of 200 Ohms. It exhibits a reverse leakage current of 10 nA at 22.8V and a forward voltage (Vf) of 1.1V at 200mA. The diode is housed in a DO-35 (DO-204AH, DO-35) axial package and is suitable for through-hole mounting. The operating temperature range extends up to 175°C (TJ). This device is commonly utilized in power supply regulation, voltage clamping, and surge protection applications across various industrial and consumer electronics sectors. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 30 V |
| Impedance (Max) (Zzt) | 200 Ohms |
| Supplier Device Package | DO-35 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 nA @ 22.8 V |
