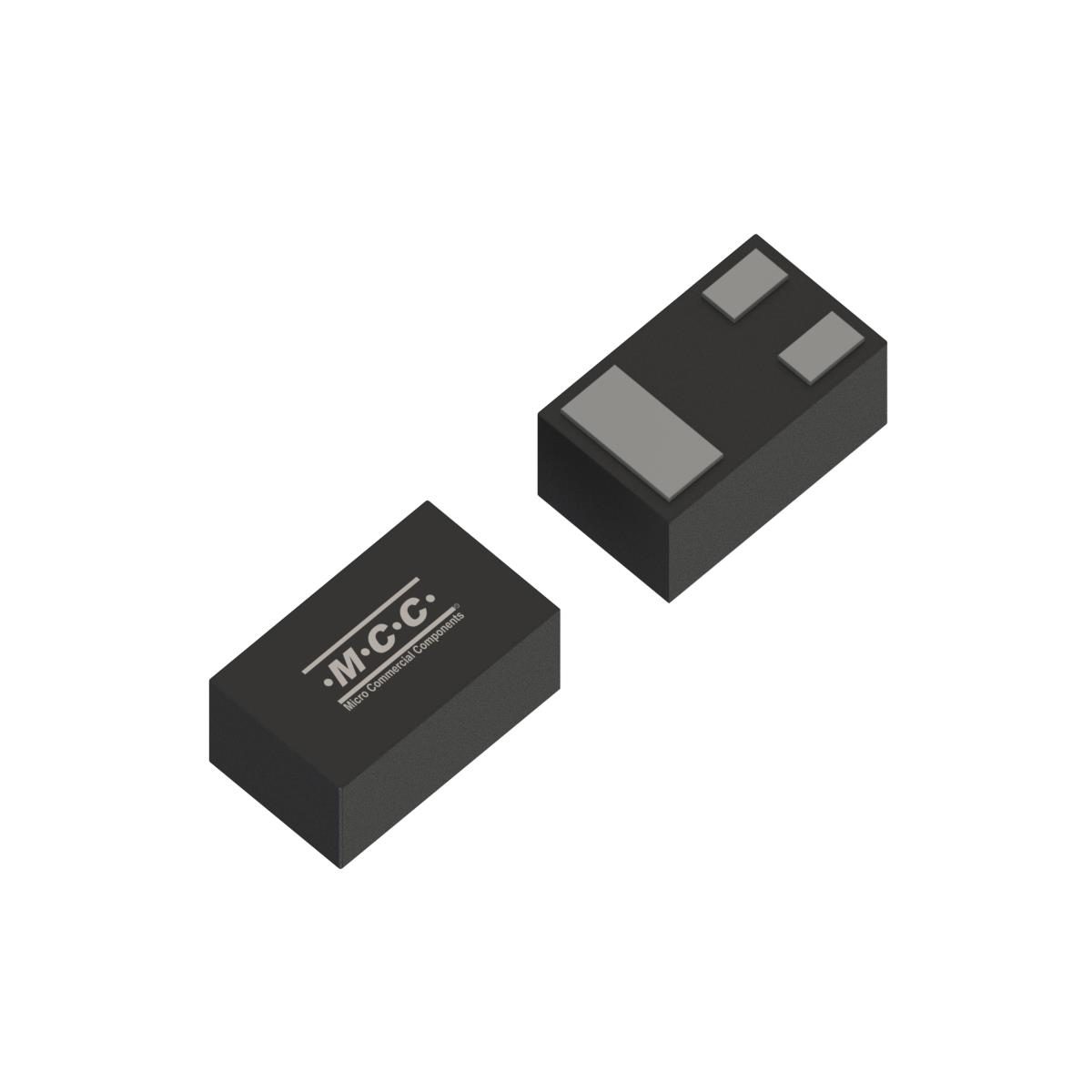

DTA114EL3-TP
ICManufacturer: Micro Commercial Co
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 145 MHz 150 mW Surface Mount DFN1006-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Supplier Device Package | DFN1006-3 |
| Grade | - |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 150 mW |
| Frequency - Transition | 145 MHz |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms |
| Qualification | - |
Request a Quote
