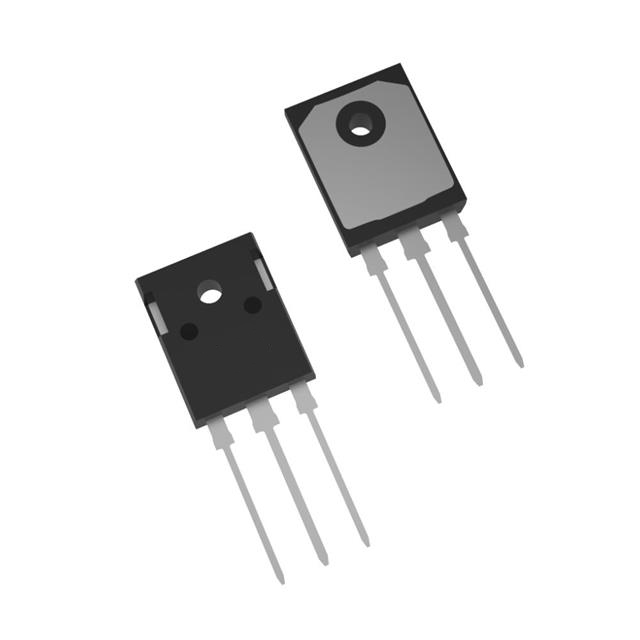

SICW040N120H4-BP
SIC MOSFET,TO-247-4Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 62A (Tc) 326W (Tc) Through Hole TO-247-4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 62A (Tc) |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 30A, 20V |
| FET Feature | - |
| Power Dissipation (Max) | 326W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 40mA |
| Supplier Device Package | TO-247-4 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +20V, -5V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 229 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3619 pF @ 800 V |
| Qualification | - |
