MCMP06-TP
MOSFET P-CH 2A DFN2020-6UManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More

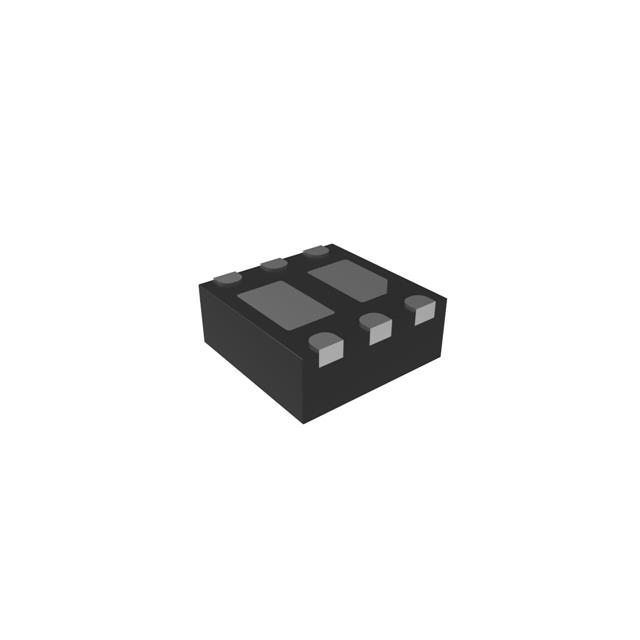

Micro Commercial Co MCMP06-TP is a P-Channel MOSFET designed for demanding applications. This surface mount component, housed in a DFN2020-6U package, offers a continuous drain current of 2A at 25°C (Ta). Key electrical characteristics include a low on-resistance (Rds On) of 110mOhm at 2.8A and 4.5V, and a gate threshold voltage (Vgs(th)) of 1V at 250µA. The device features an isolated Schottky diode, enhancing its performance and reliability. With an operating junction temperature up to 150°C, the MCMP06-TP is suitable for use in automotive, industrial, and power management systems where efficient switching and robust performance are critical. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 2.8A, 4.5V |
| FET Feature | Schottky Diode (Isolated) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | DFN2020-6U |
