MCM1208-TP
MOSFET P-CH 12V 8A DFN2020-6JManufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Micro Commercial Co MCM1208-TP is a P-Channel MOSFET designed for power management applications. This component features a Drain-Source Voltage (Vdss) of 12V and a continuous Drain Current (Id) of 8A (Ta) at 25°C. The Rds On is specified at a maximum of 28mOhm at 5A and 4.5V Vgs. Gate charge is rated at 21 nC maximum at 4.5V Vgs, with input capacitance (Ciss) at 1275 pF maximum at 6V Vds. The device operates within a temperature range of -55°C to 150°C (TJ). It is supplied in a DFN2020-6J package suitable for surface mounting and is delivered on a tape and reel. This MOSFET is commonly utilized in consumer electronics and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

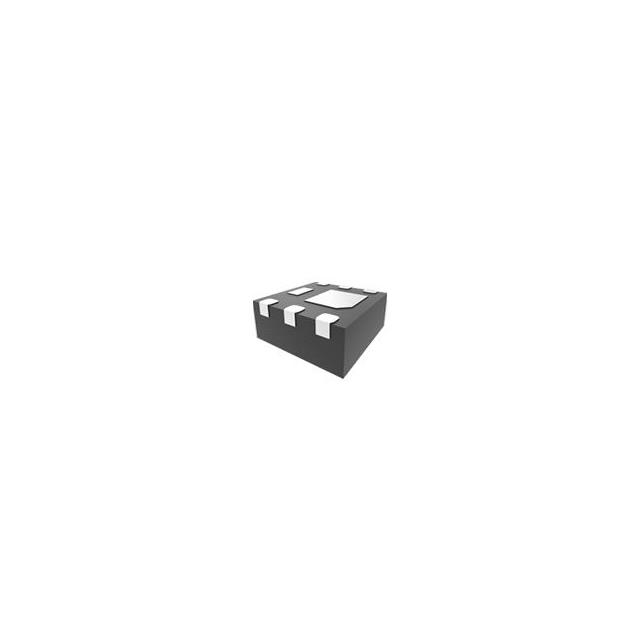

| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | DFN2020-6J |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1275 pF @ 6 V |
