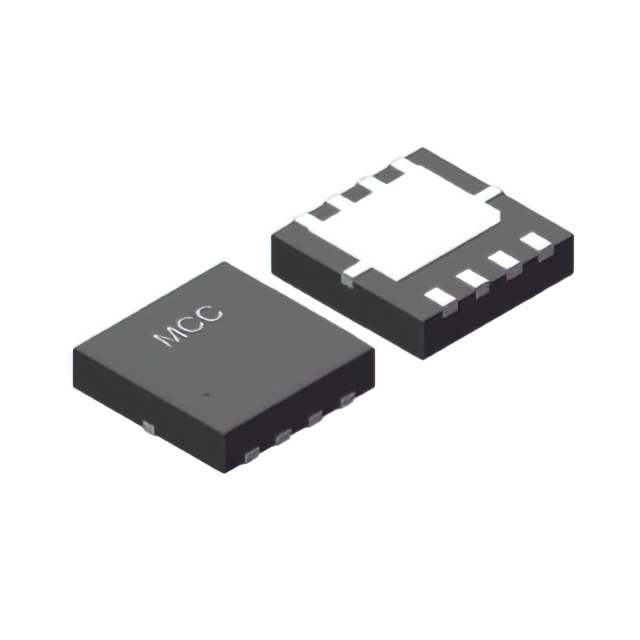

MCG60N06YHE3-TP
N-CHANNEL MOSFET,DFN3333Manufacturer: Micro Commercial Co
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 60A (Tc) 60W (Tj) Surface Mount DFN3333
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tj) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | DFN3333 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 34.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1666 pF @ 30 V |
| Qualification | AEC-Q101 |
